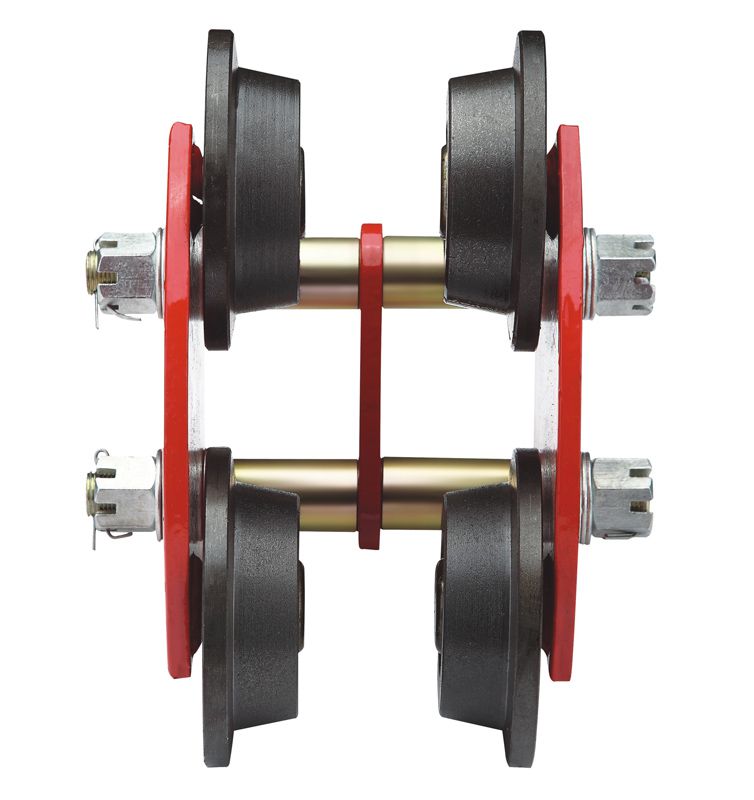

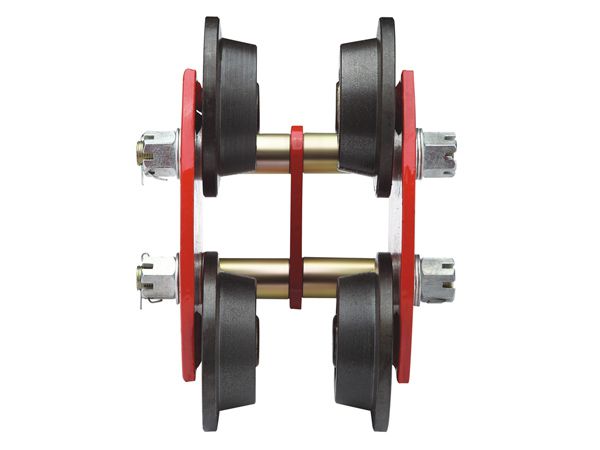

Manual Trolley, TH Series

Manual Trolley, TH Series

The manual trolley is easily attached to beam flange and can quickly turn beam into overhead crane, single-girder crane or jib crane by equipping with electric chain hoist or manual cable hoist. These beam trolleys can effortlessly move hoists along beams and are widely used in factories, mines, loading docks, warehouses, construction sites, and various applications including mechanical processing, injection molding, die-casting, stamping, mold assembling, etc.

Model
  • TH0.8
  • TH1
  • TH2
Inquiry
Technical Data
Model Rated capacity (kg) Standard operation height (m) Min. radius curve (m) Applicable I-beam Net weight (kg)
I-beam type(a) Flange width (mm)
TH0.8 800 3 1 10-18 68-94 4.5
TH1 1000 1.5 14-20 80-102 11.5
TH2 2000 13
Tags
Manual trolley beam trolley manufacturer manual hoist trolley
