250-500KG Windlass

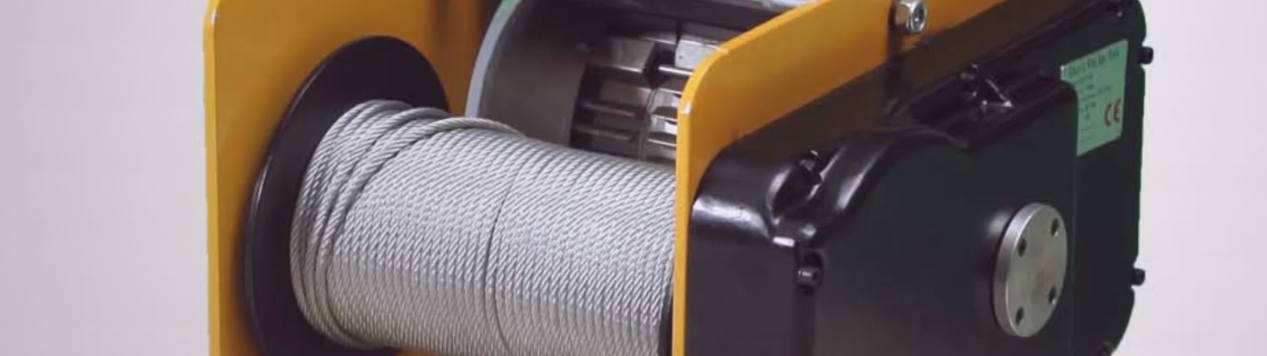

video
00:00
00:41

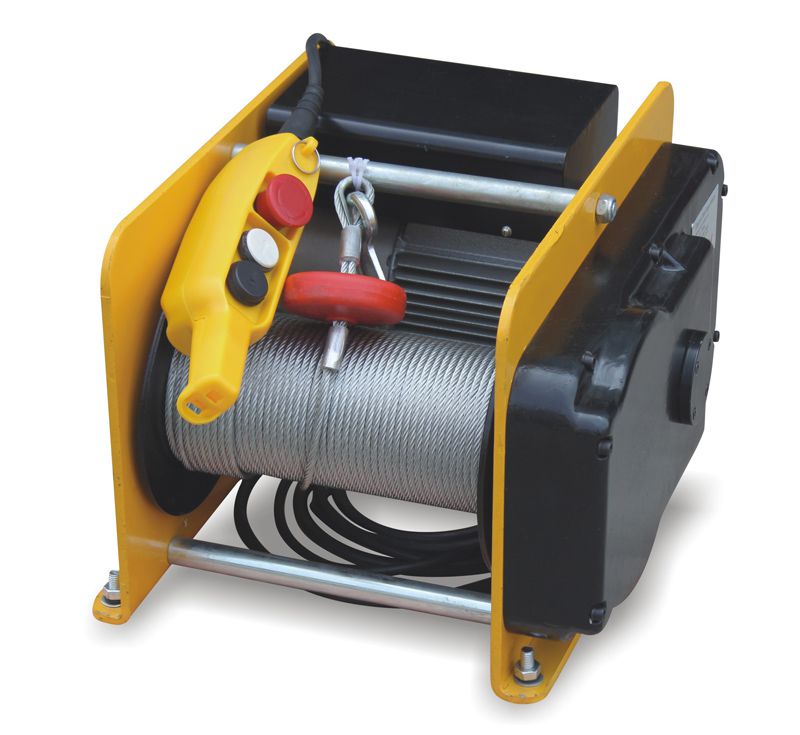

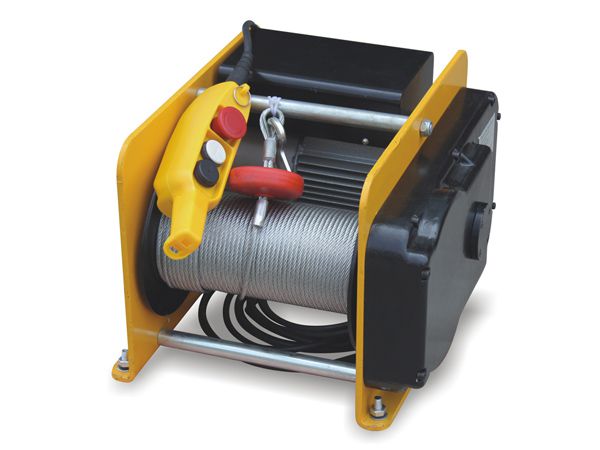

250-500KG Windlass
  • 250-500KG Windlass
  • 250-500KG Windlass
Model
  • KDJ-250B
  • KDJ-500B
  • KDJ-250B1
  • KDJ-500B1
Features
  • Transmission structure
    The hoist drum is connected to gearbox through two-stage geared coupling, featuring simple structure and easy to operate.
  • Wire rope tightening
    Put a P.T. screw into the hole of the drum to tighten the wire rope, it can efficiently prevent the wire rope from falling off.
  • Heavy duty brake
    Electromagnetic brake with wear resistant brake disc is adopted, and it features a simple structure without adjusting brake air gap. The brake can be automatically and immediately activated during power failure to efficiently control the lowering of heavy loads, ensuring operation safety.
Inquiry
  • Motor
    The winch can be equipped with three-phase asynchronous motor or single-phase capacitor-run motor to ensure large starting torque, low temperature rise and prolonged service life. All motors are with class B insulation.
  • Gear
    The gears are made of high grade steel which is hardened by heat treatment and precisely processed, featuring good wear resistance, low noise, high efficiency and excellent mechanical performance.
  • Control system
    The handle is designed with low voltage control and protection rating of IP65, guaranteeing a reliable safety.
Technical Data
Model KDJ-250B KDJ-500B KDJ-250B1 KDJ-500B1
Rated capacity (kg) 250 500 250 500
Rated speed (m/min) 15 20 30 20
Lifting height (m) 58
Wire rope diameter (mm) Φ5 Φ6 Φ5 Φ6
Wire rope length (m) 60
Motor (kw) 1.1 2.2 1.1 2.2
Number of poles 4
Voltage (v) 230 Three Phase 380
Frequency (Hz) 50
Net weight (kg) 64 106 64 106

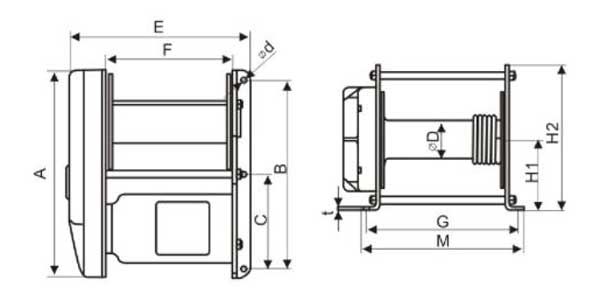

Dimensions
      Model
Symbol 		KDJ-250B KDJ-500B KDJ-250B1 KDJ-500B1
A 436 520 436 520
B 295 480 295 480
C   240   240
D 83 122 83 122
d 13 15 13 15
E 380 415 380 415
F 265 270 265 270
G 322 338 322 338
G1 147 188 147 188
G2 305 372 305 372
M 345 370 345 370
t 8 10 8 10
