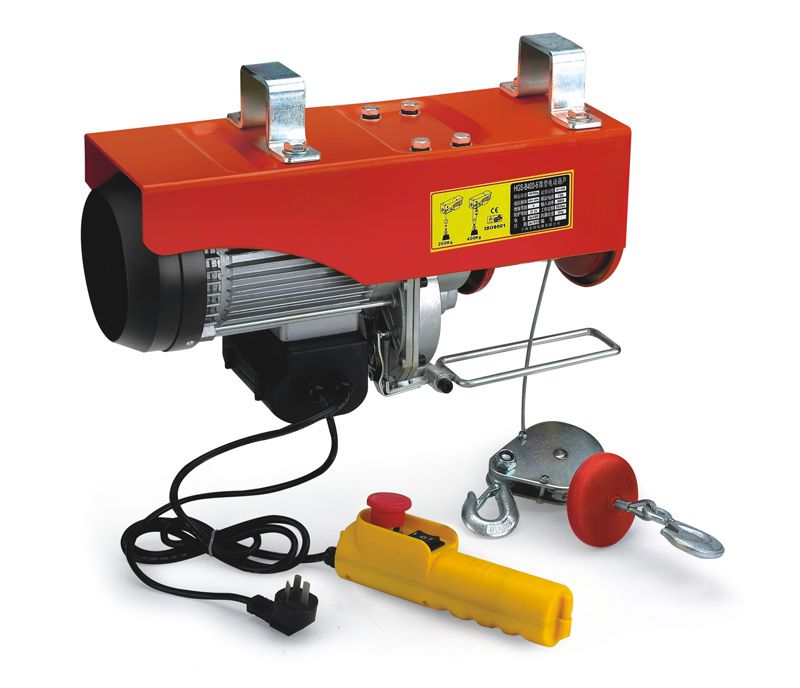

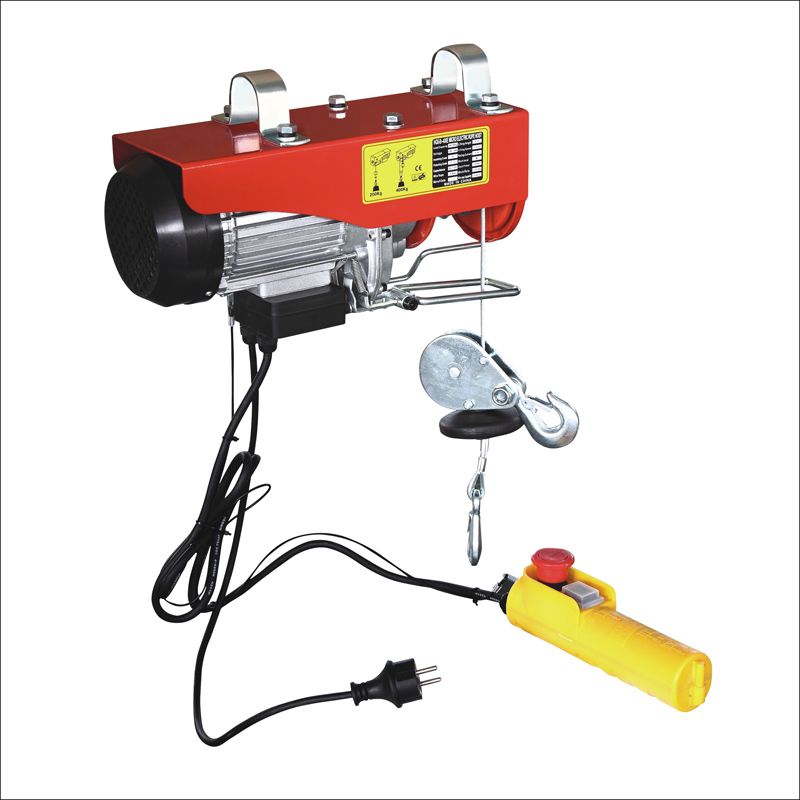

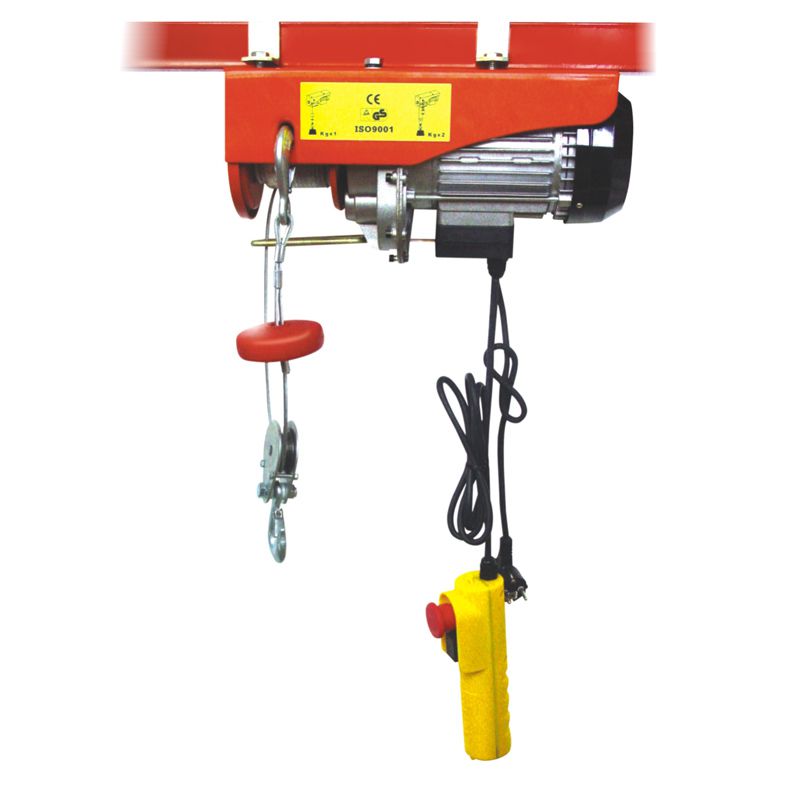

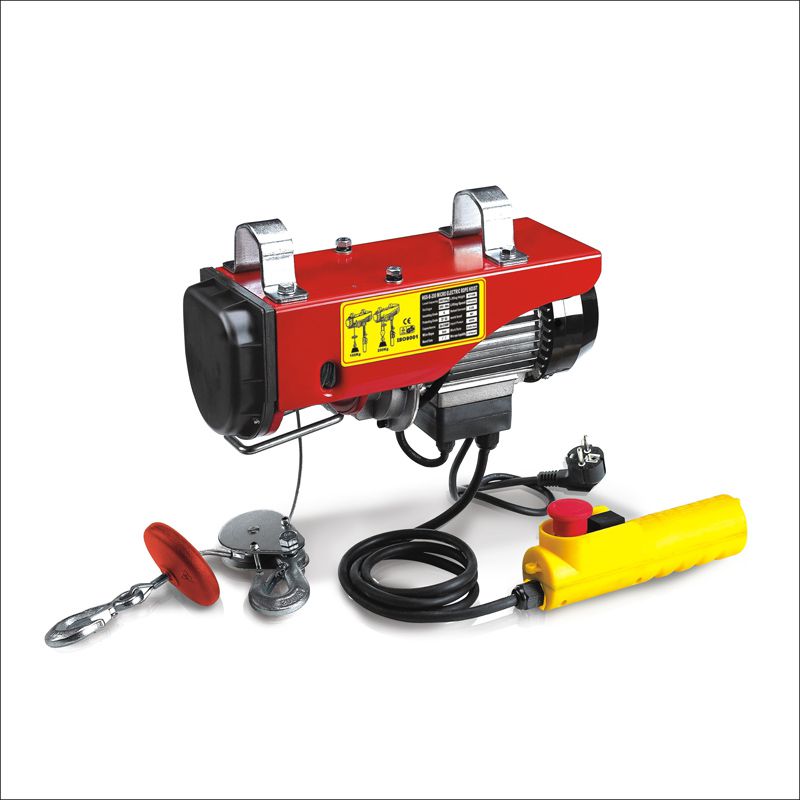

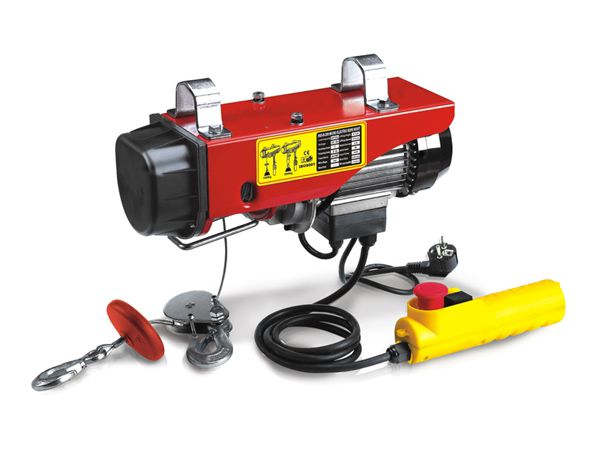

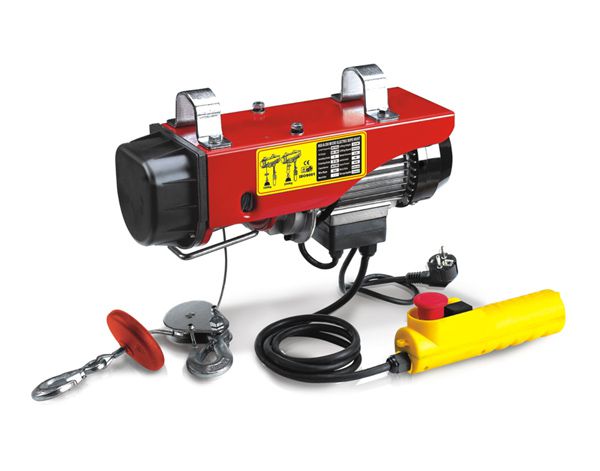

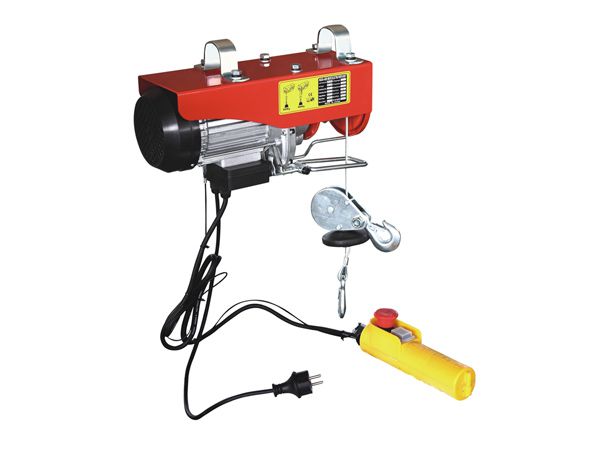

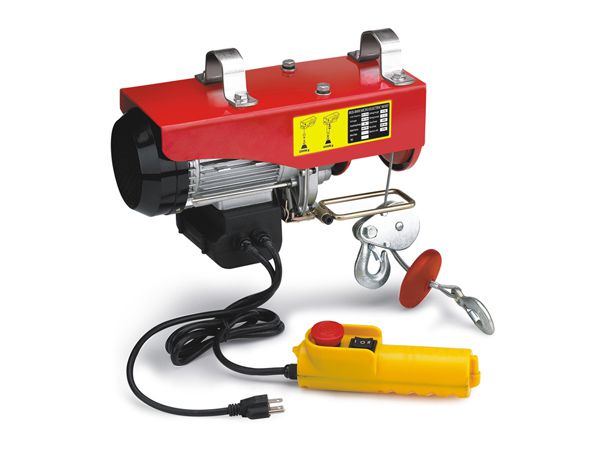

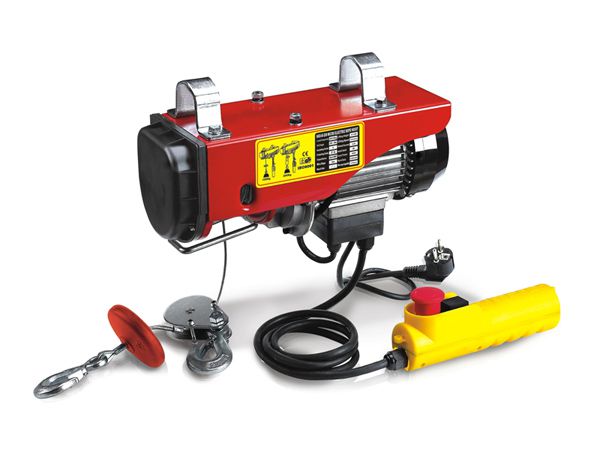

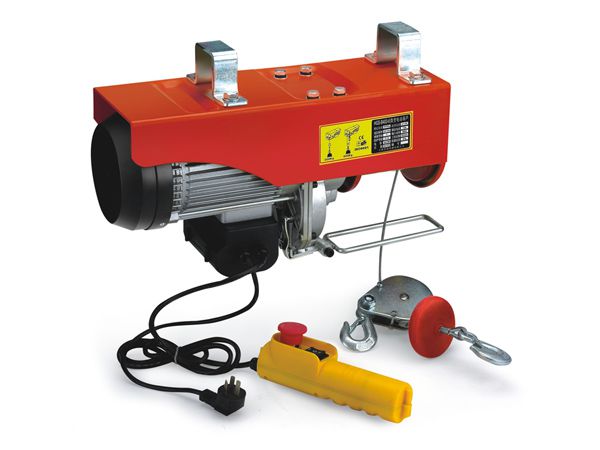

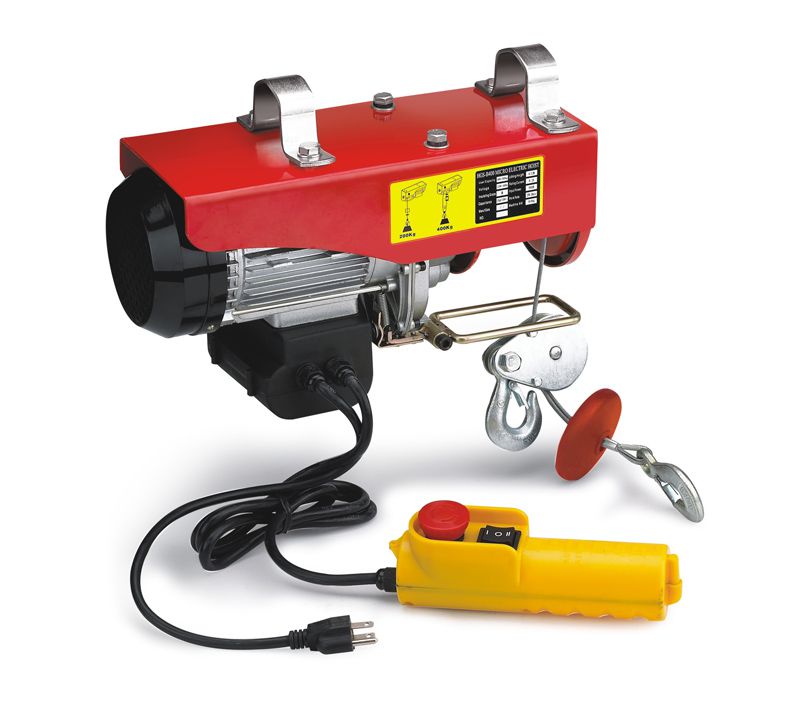

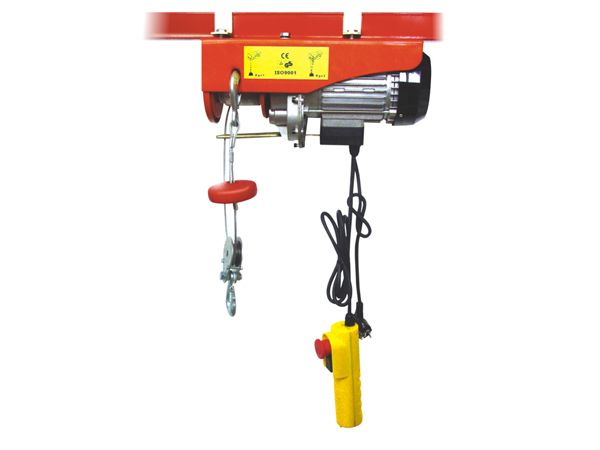

Electric Hoist, HGS Series
Features
- The electric cable hoist is designed with emergency stop switch, forced disconnect switch and raise/lower limit switch;
- Protection rating of IP54;
- Thermal overload protection unit is equipped;
PA-200E—PA-1000E Technical Data
Inquiry
| Model | Rated capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Packaging quantity(pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| Single hook/ double hook | ||||||||
| HGS-B1-200E PA-200E | 100/200 | AC 220/230/240 50/60Hz | 480 | 10/5 | 12/6 | 2 | 470×370×160 | 24/22 |
| HGS-B1-200E PA-250E | 125/250 | 540 | 10/5 | 12/6 | ||||
| HGS-B1-200E PA-300E | 150/300 | 600 | 10/5 | 12/6 | ||||
| HGS-B1-200E PA-400E | 200/400 | 950 | 10/5 | 12/6 | 520×420×170 | 35/33 | ||
| HGS-B1-200E PA-500E | 250/500 | 1020 | 10/5 | 12/6 | ||||
| HGS-B1-200E PA-600E | 300/600 | 1200 | 10/5 | 12/6 | ||||
| HGS-B1-200E PA-700E | 350/700 | 1250 | 10/5 | 12/6 | 39/37 | |||
| HGS-B1-200E PA-800E | 400/800 | 1300 | 10/5 | 12/6 | ||||
| HGS-B1-200E PA-1000E | 500/990 | 1600 | 10/5 | 12/6 | 1 | 560×250×350 | 32/31 |
PA-200—PA-1000 Technical Data
Inquiry
| Model | Rated capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Packaging quantity (pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| Single hook/ double hook | ||||||||
| HGS-B1-200 PA-200 | 100/200 | AC 220/230/240 50/60Hz | 480 | 10/5 | 12/6 | 2 | 490×425×155 | 25/23 |
| HGS-B1-250 PA-250 | 125/250 | 540 | 10/5 | 12/6 | ||||
| HGS-B1-300 PA-300 | 150/300 | 600 | 10/5 | 12/6 | ||||
| HGS-B1-400 PA-400 | 200/400 | 950 | 10/5 | 12/6 | 525×480×165 | 37/35 | ||
| HGS-B1-500 PA-500 | 250/500 | 1020 | 10/5 | 12/6 | ||||
| HGS-B1-600 PA-600 | 300/600 | 1200 | 10/5 | 12/6 | ||||
| HGS-B1-700 PA-700 | 350/700 | 1250 | 10/5 | 12/6 | 540×505×170 | 41/39 | ||
| HGS-B1-800 PA-800 | 400/800 | 1300 | 10/5 | 12/6 | ||||
| HGS-B1-1000 PA-1000 | 500/990 | 1600 | 10/5 | 12/6 | 1 | 620×240×350 | 35/34 |
PA-200D—PA-1000D Technical Data
Inquiry
| Model | Rated capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Packaging quantity (pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| Single hook/ double hook | ||||||||
| HGS-B1-200D PA-200D | 100/200 | AC 220/230/240 50/60Hz | 480 | 10/5 | 12/6 | 2 | 480×420×160 | 24/22 |
| HGS-B1-250D PA-250D | 125/250 | 540 | 10/5 | 12/6 | ||||
| HGS-B1-300D PA-300D | 150/300 | 600 | 10/5 | 12/6 | ||||
| HGS-B1-400D PA-400D | 200/400 | 950 | 10/5 | 12/6 | 520×475×165 | 36/34 | ||
| HGS-B1-500D PA-500D | 250/500 | 1020 | 10/5 | 12/6 | ||||
| HGS-B1-600D PA-600D | 300/600 | 1200 | 10/5 | 12/6 | ||||
| HGS-B1-700D PA-700D | 350/700 | 1250 | 10/5 | 12/6 | 530×495×175 | 38/36 | ||
| HGS-B1-800D PA-800D | 400/800 | 1300 | 10/5 | 12/6 | ||||
| HGS-B1-1000D PA-1000D | 500/990 | 1600 | 10/5 | 12/6 | 1 | 610×245×350 | 33/32 |
PA-200A—PA-1000A Technical Data
Inquiry
| Model | Rated capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Packaging quantity (pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| Single hook/ double hook | ||||||||
| HGS-B200 PA200A | 100/200 | AC 220/230/240 50/60Hz | 480 | 10/5 | 12/6 | 2 | 470×370×160 | 24/22 |
| HGS-B250 PA250A | 125/250 | 540 | 10/5 | 12/6 | ||||
| HGS-B300 PA-300A | 150/300 | 600 | 10/5 | 12/6 | ||||
| HGS-B400 PA-400A | 200/400 | 950 | 10/5 | 12/6 | 520×420×170 | 35/33 | ||
| HGS-B500 PA-500A | 250/500 | 1020 | 10/5 | 12/6 | ||||
| HGS-B600 PA-600A | 300/600 | 1200 | 10/5 | 12/6 | ||||
| HGS-B700 PA-700A | 350/700 | 1250 | 10/5 | 12/6 | 39/37 | |||
| HGS-B800 PA-800A | 400/800 | 1300 | 10/5 | 12/6 | ||||
| HGS-B1000 PA-1000A | 500/990 | 1600 | 10/5 | 12/6 | 1 | 560×250×350 | 32/31 | |
| HGS-B1200 PA-1200A | 600/990 | 1800 | 10/5 | 12/6 |
PA200B-PA600B Technical Data
Inquiry
| Model | Rated capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Packaging quantity (pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| Single hook/ double hook | ||||||||
| HGS-B200B PA200B | 100/200 | AC 100/110/120 50/60Hz | 480 | 10/5 | 12/6 | 2 | 410×400×280 | 24/22 |
| HGS-B400B PA-400B | 200/400 | 950 | 10/5 | 12/6 | 460×450×320 | 36/34 | ||
| HGS-B600B PA-600B | 300/600 | 1200 | 10/5 | 12/6 | ||||
| HGS-B800B PA-800B | 400/800 | 1300 | 10/5 | 12/6 | 1 | 465×215×300 | 19/18 | |
| HGS-B1000B PA-1000B | 500/990 | 1600 | 10/5 | 12/6 | 555×235×335 | 32/31 |
PA200L—PA500L Technical Data
Inquiry
| Model | Rated capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Packaging quantity (pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| Single hook/ double hook | ||||||||
| HGS-BK200 PA-200L | 100/200 | AC 220/230/240 50/60HZ |
1020 | 10/5 | 12/6 | 2 | 520×420×170 | 35/33 |
| HGS-BK300 PA-300L | 150/300 | 1300 | 10/5 | 12/6 | 520×450×170 | 39/37 | ||
| HGS-BK400 PA-400L | 200/400 | 1600 | 10/5 | 12/6 | 1 | 560×250×350 | 32/31 | |
| HGS-BK500 PA-500L | 250/500 | 1800 | 10/5 | 12/6 |
