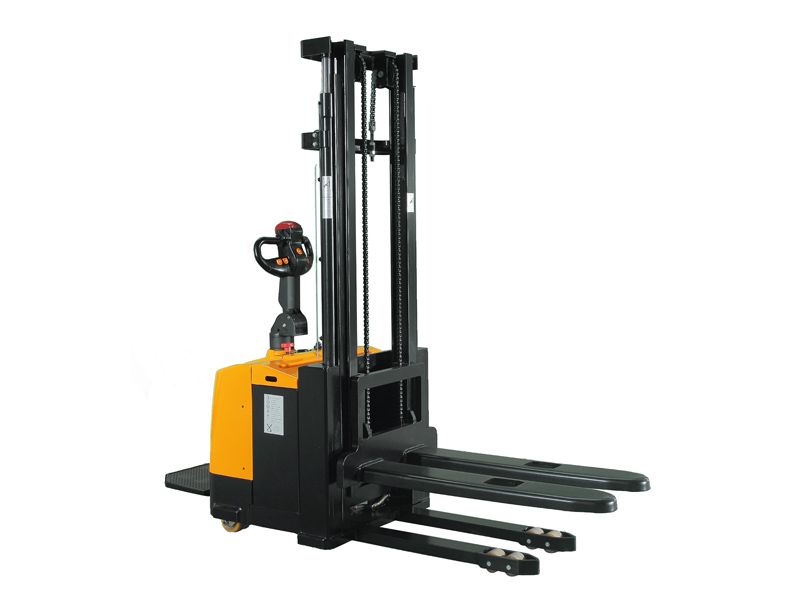

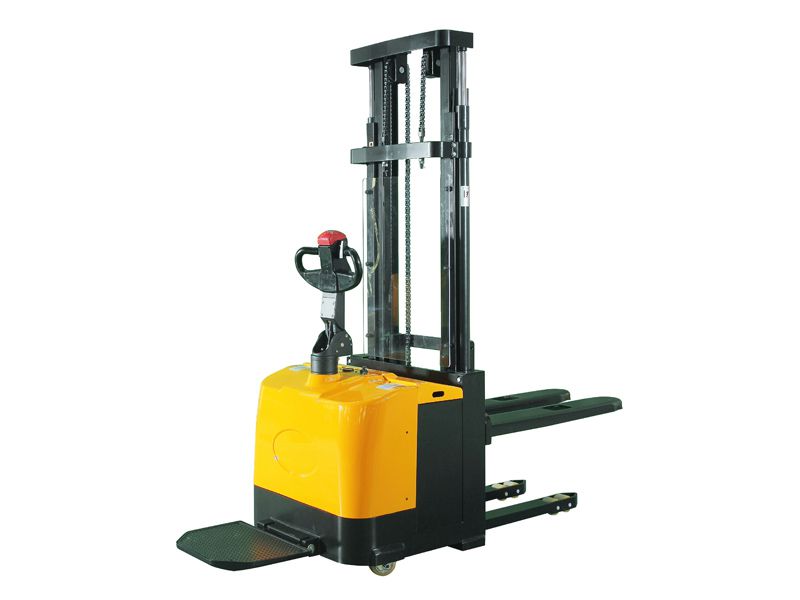

Model | Units | KX-CDD-A15 | KX-CDD-H20 | KX-CDD-H25 |
Rated capacity | Kg | 1500 | 2000 | 2500 |
Lifting height | mm | 1600/2000/2500/3000 |
Lowered mast height | mm | 2068/2568/3068/3568 |
Extended mast height | mm | 2068/1568/1818/2068 |
Fork length | mm | 1150 |
Fork width | mm | 550/685 |
Overall length | mm | 2440 |
Overall width | mm | 850 |
Turning radius | mm | 1588 |
Wheel material | PU | Polyurethane |
Loading wheel size | mm | Φ85x80 |
Driving wheel size | mm | Φ210x70 | Φ250x75 |
Distance between front wheel and rear wheel | mm | 1345 |
Travel speed (unladen/ laden) | km/h | 4.5/3.5 |
Lifting speed (unladen/ laden) | mm/s | 90/45 | 120/100 |
Lowering speed (unladen/ laden) | mm/s | 100/120 | 130/150 |
Gradeability (unladen/ laden) | ° | 6/4.5 | 7/5 |
Drive motor | kw | 0.75 | 2.2 |
Lift motor | kw | 2.2 | 3 |
Battery | V/Ah | 2X12/80 | 24/210 |
Net weight /gross weight | kg | 1047/1063 | 1074/1090 | 1097/1113 |
1110/1116 | 1129/1145 | 1149/1165 |
1127/1143 | 1146/1162 | 1166/1182 |
1134/1150 | 1154/1170 | 1174/1190 |
