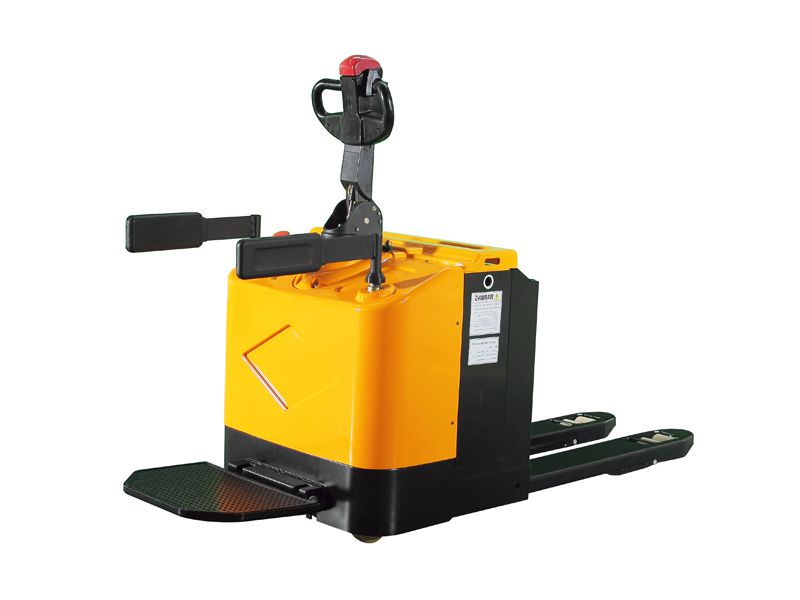

Model | Units | KX-QDC15-A | KX-QDC20-A | KX-QDC20 | KX-QDC25 | KX-QDC30 |
Rated capacity | kg | 1500 | 2000 | 2000 | 2500 | 3000 |
Min. fork height | mm | 85 | 85 |
Max. fork height | mm | 200 | 200 |

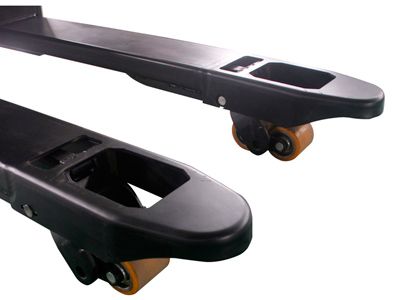

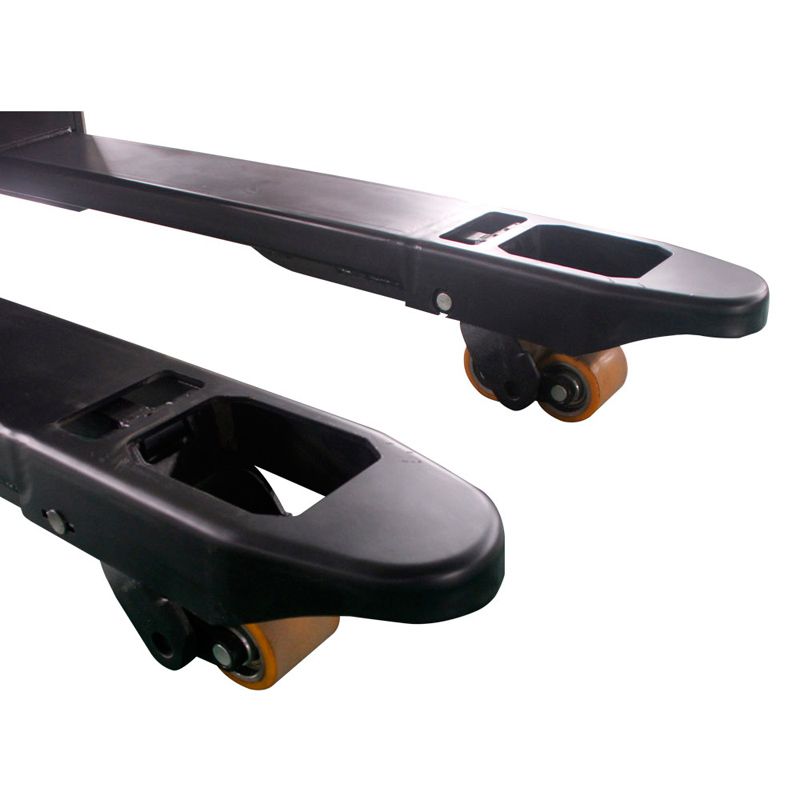

Fork size | mm | 55x160x1150 | 55x160x1150 |
Width between outer edges of forks | mm | 550/685 | 550/685 |
Overall width | mm | 790 | 790 |
Overall length (unfolded platform) | mm | 2310 | 2310 |
Overall height (without handle/with handle) | mm | 860/1450 | 860/1450 |
Turning radius | mm | 1600 | 1600 |
Wheels Material | PU | Polyurethane | Polyurethane |
Load roller size | mm | Φ85x80 | Φ85x80 |
Driving wheel size | mm | Φ210x70 | Φ210x70 |
Travel speed (unladen/ laden) | km/h | 4.2/3.5 | 6.2/5.2 |
Lifting speed (unladen/ laden) | mm/s | 58/48 | 58/48 |
Lowering speed (unladen/ laden) | mm/s | 58/48 | 58/48 |
Gradeability (unladen/ laden) | ° | 6/4.5 | 7/5 |
Brake | | Electromagnetic brake | Electromagnetic brake |
Lift motor | kw | 0.75 | 2.2 |
Drive motor | kw | 2.2 | 2.2 |

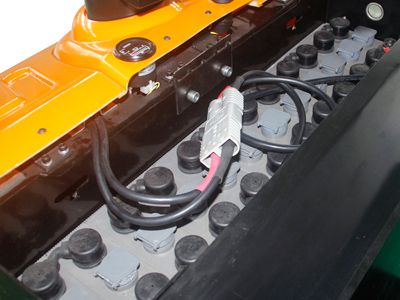

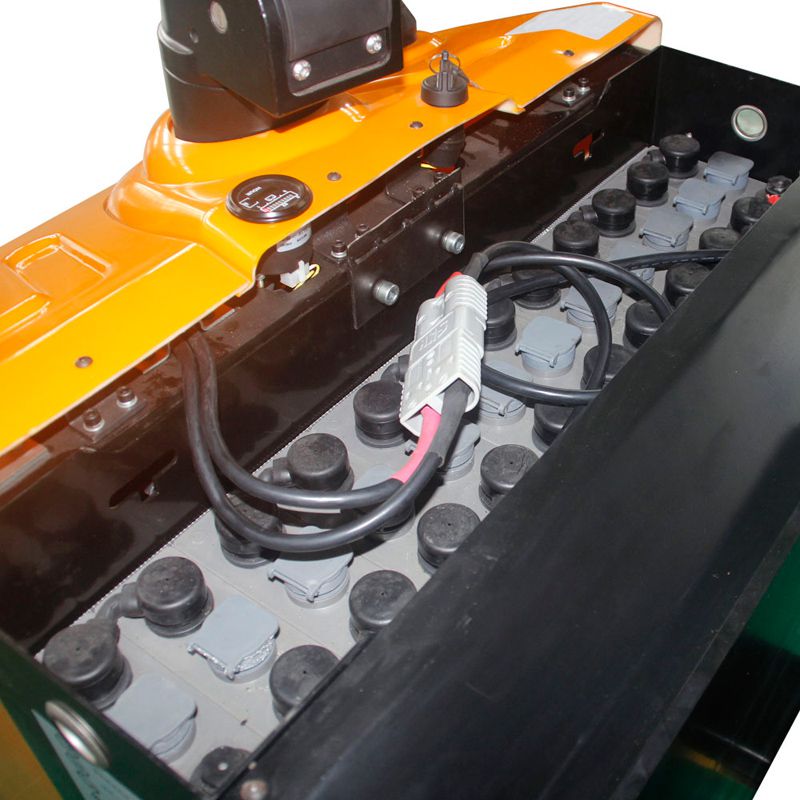

Battery voltage/capacity | V/Ah | 2x12/80 | 24/210 |
Net weight/gross weight | kg | 560/574 | 754/770 | 754/770 | 784/800 | 809/825 |
