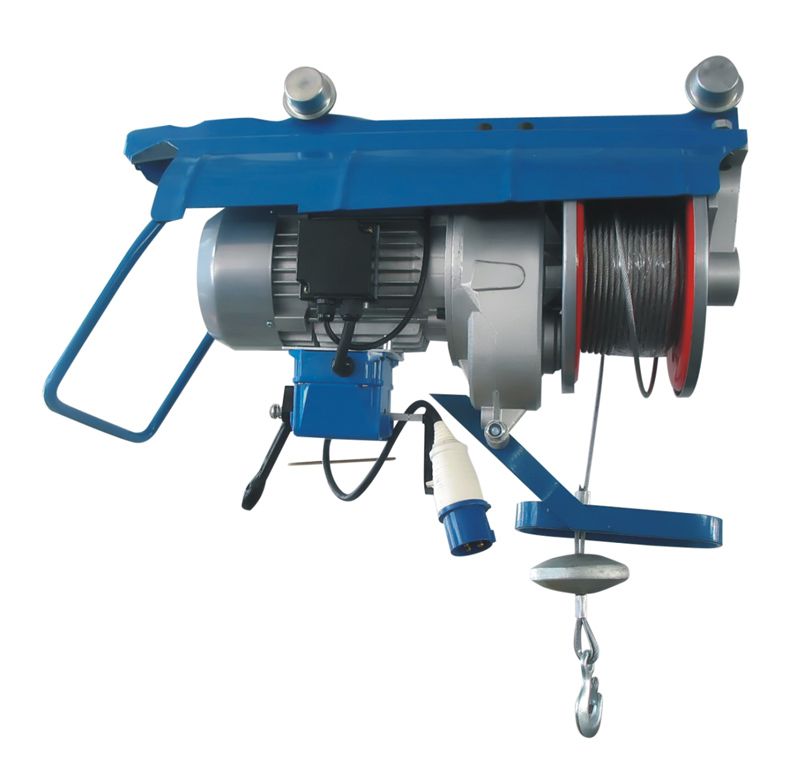

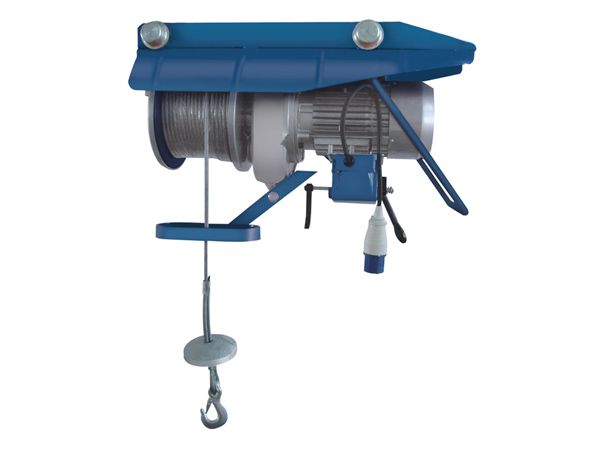

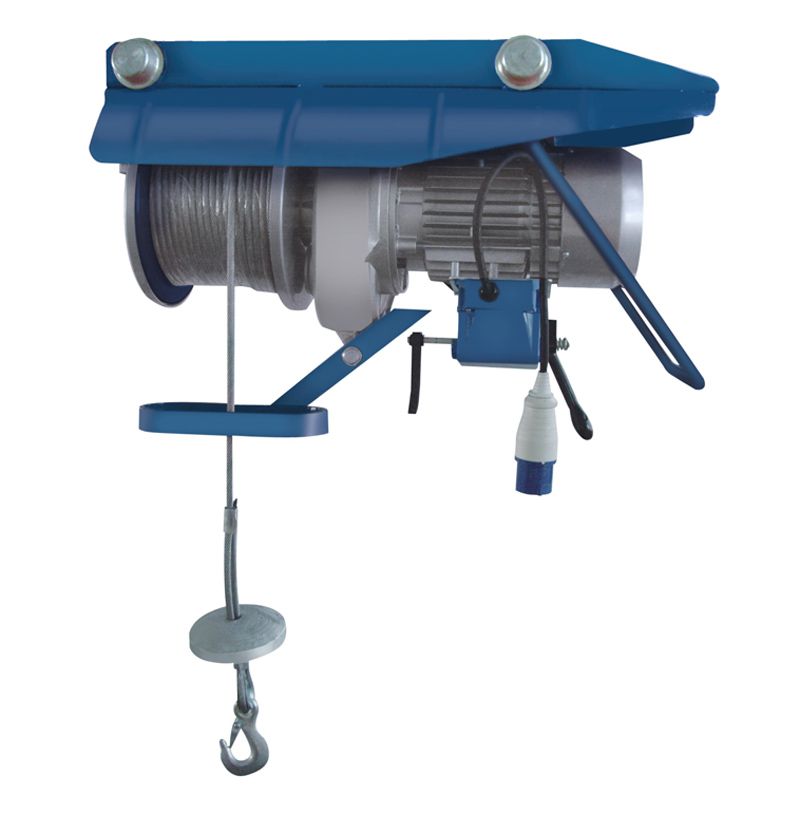

Push Electric Hoist, HSG Series
Model
- HSG-B300
- HSG-B400
- HSG-B500
- HSG-B300E1
- HSG-B400E1
- HSG-B500E1
- HSG-B300F
- HSG-B400F
- HSG-B500F
- HSG-B300F1
- HSG-B400F1
- HSG-B500F1
Features
- Utilized to lift or lower heavy objects in construction and mining applications;
- Adopting motor with Class B insulation and IP54 protection rating;
- With thermal overload protection unit;
- Handel control voltage: AC 24V;
- Handel control switch protection: IP65;
- Working rate: S3-30% 20min
Inquiry
Technical Data
| Model | Rated capacity (kg) | Lifting height (m) | Lifting speed (m/min) | Voltage (v) | Wire rope diameter (mm) | Frequency (Hz) | Packaging size (mm) | Gross weight/net weight (kg) |
| HSG-B300 | 300 | 24 | 21 | AC 110/220/230/240 | Φ6 | 50/60 | 800×340×540 | 57/55 |
| HSG-B400 | 400 | |||||||
| HSG-B500 | 500 | 16 | Φ7 | 60/58 | ||||
| HSG-B300E1 | 300 | 28 | AC 230/380/440 | Φ6 | 57/55 | |||
| HSG-B400E1 | 400 | 21 | ||||||
| HSG-B500E1 | 500 | Φ7 | 60/58 | |||||
| HSG-B300F | 300 | 24 | 21 | AC 110/220/230/240 | Φ6 | 50/60 | 800×340×540 | 58/56 |
| HSG-B400F | 400 | |||||||
| HSG-B500F | 500 | 16 | Φ7 | 62/60 | ||||
| HSG-B300F1 | 300 | 28 | AC 230/380/440 | Φ6 | 58/56 | |||
| HSG-B400F1 | 400 | 21 | ||||||
| HSG-B500F1 | 500 | Φ7 | 62/60 |
