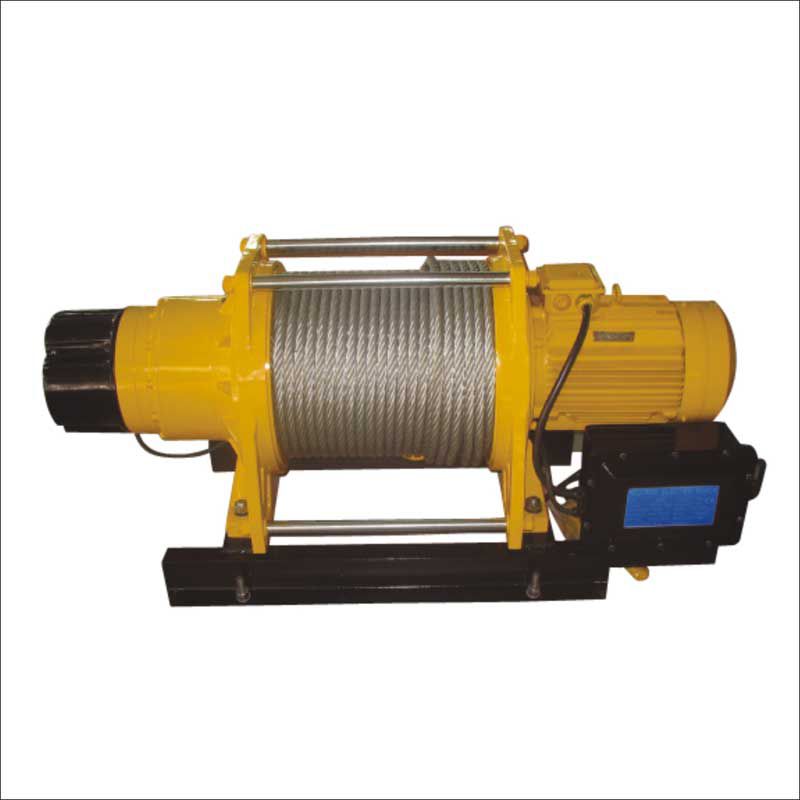

2000-3500KG Electric Windlass

2000-3500KG Electric Windlass
Model
  • KDJ-2200E1
  • KDJ-3200E1
  • KDJ-3500E1
Features
  • Transmission structure
    The transmission structure adopts planetary gear mechanism, and the hoist drum is connected to gearbox through coupling, allowing the drum to be turned directly. And it is easy to replace wire rope or change its rotating direction.
  • Wire rope tightening
    Put a P.T. screw into the hole of the drum to tighten the wire rope, it can efficiently prevent the wire rope from falling off.
  • Heavy duty brake
    Electromagnetic disc brake with wear resistant brake disc is adopted, and it features a simple structure without adjusting brake air gap. The brake can be automatically and immediately activated during power failure to efficiently control the lowering of heavy loads, ensuring operation safety.
Inquiry
  • Gearbox
    The gearbox is made of ductile cast iron FCD-45#, strong malleability and not easy to break.
  • Motor
    The hoisting motor with class B insulation is featured by large starting torque, small inertia and low temperature rise, suitable for frequent operation.
  • Gear
    The gears are made of high grade steel which is hardened by heat treatment and precisely processed, featuring good wear resistance, low noise, high efficiency and excellent mechanical performance.
  • Mount bracket
    The mount bracket is made of standard channel steel through welding process, applicable to be mounted in construction sites, loading docks and other workplaces.
Technical Data
Model KDJ-2200E1 KDJ-3200E1 KDJ-3500E1
Rated capacity (kg) 2200 3200 3500
Rated speed (m/min) 10 11
Lifting height (m) 97 140
Wire rope diameter (mm) Φ16 Φ18
Wire rope length (m) 100 143
Work level M3
Motor (kw) 6 7.5 9
Number of poles 4
Voltage (v) Three Phase 230/380/415/440/480
Frequency (Hz)   50/60
Net weight (kg) 450 500 550

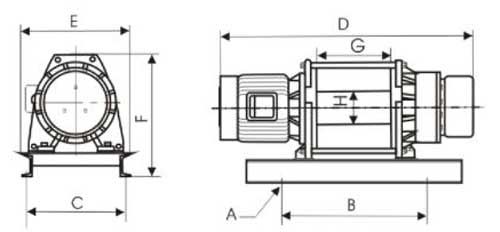

Dimensions
  Model
Symbol
KDJ-2200E1 KDJ-3200E1 KDJ-3500E1
A 4-Φ22
B 600 847 847
C 499 499 499
D 1160 1431 1431
E 565 565 565
F 658 860 860
G 312 416 416
H Φ178

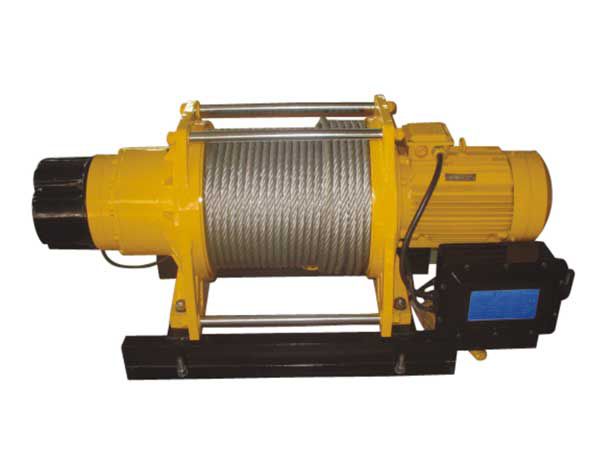

2000-3500KG Electric Windlass
