Electric Chain Hoist, HHXG Series

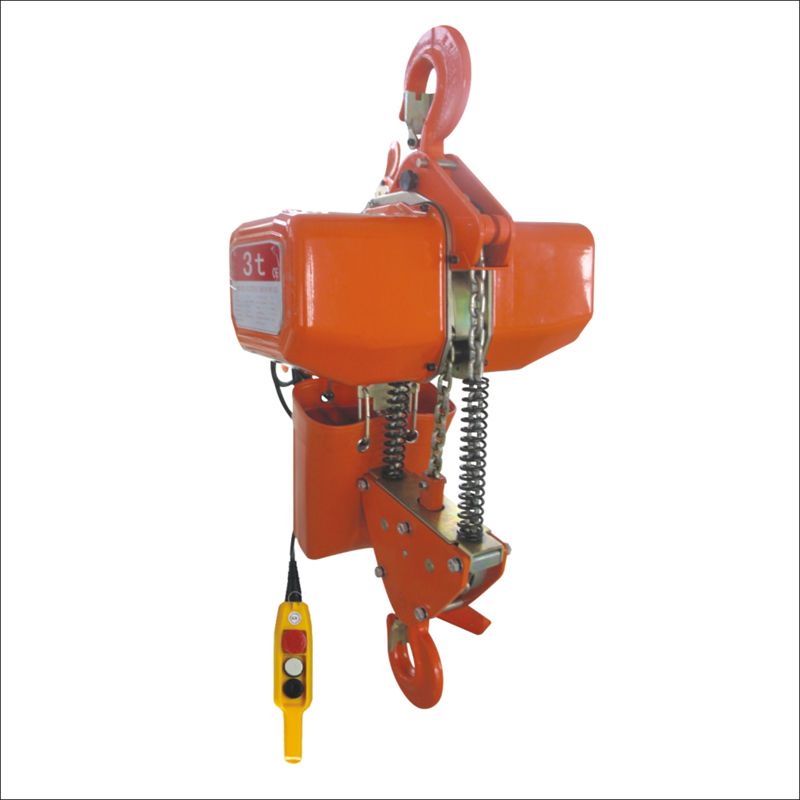

Features

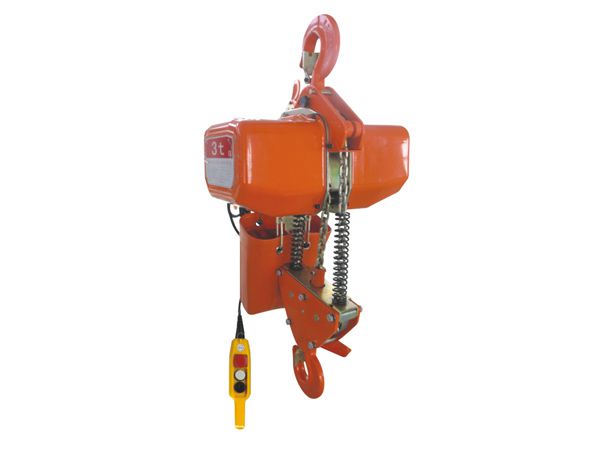

- The electric chain hoist has a stamped steel construction for rigorous use;
- Compact structure makes the hoist easy for material lifting;
- Designed with raise/lower limit switch, phase sequence protecting unit and electromagnetic brake;
Inquiry
Technical Data
| Model | Rated load (kg) | Rated voltage (V) | Handel control voltage (V.AC) | Chain size (mm × m) | Motor power (kw) | Lifting speed (m/min) | Lifting height (m) | Working rate | Packaging size (mm) | Gross weight/ Net weight (kg) |
| HHXG-H0.5 | 500 | AC 100/110/120 220/230/240 50/60HZ | 24 | Φ7.1×21 | 0.85 | 7.2 | 6 | S3-30% 20min | 570×400×640 | 68/60 |
| HHXG-H1 | 1000 | 3.6 | 3 | 70/62 | ||||||
| HHXG-K1 | AC 230/380 420/440 50/60HZ | 1.5 | 7.2 | 6 | 68/60 | |||||
| HHXG-K2 | 2000 | 3.6 | 3 | 70/62 | ||||||
| HHXG-K3 | 3000 | 2.4 | 590×620×510 | 90/79 |

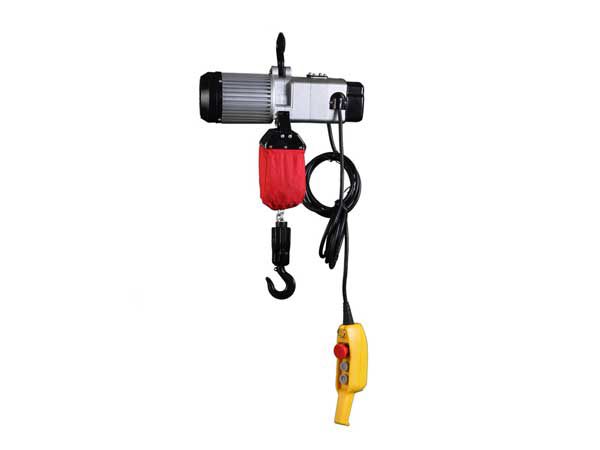

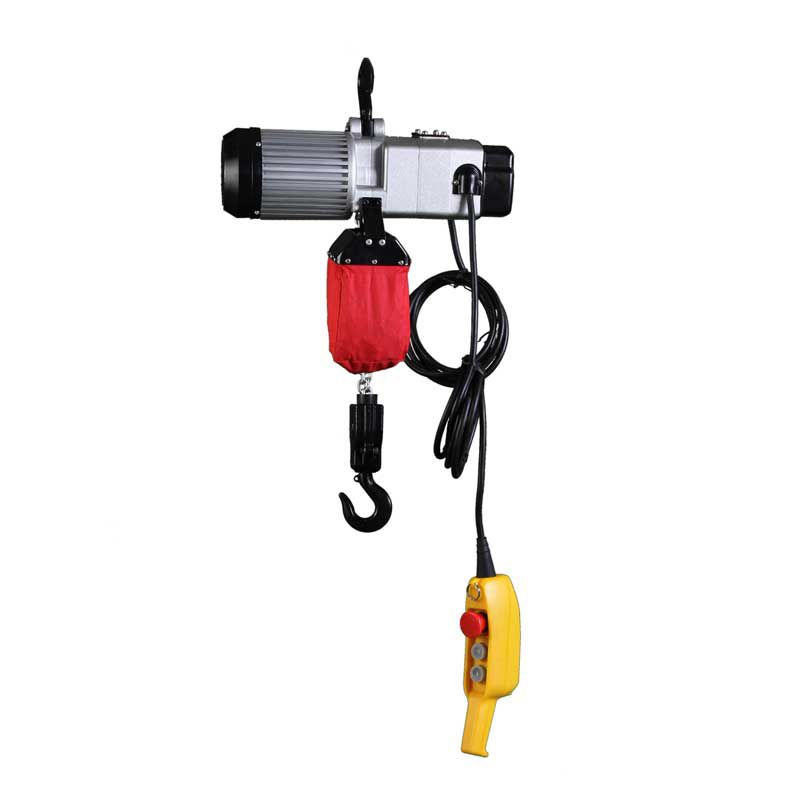

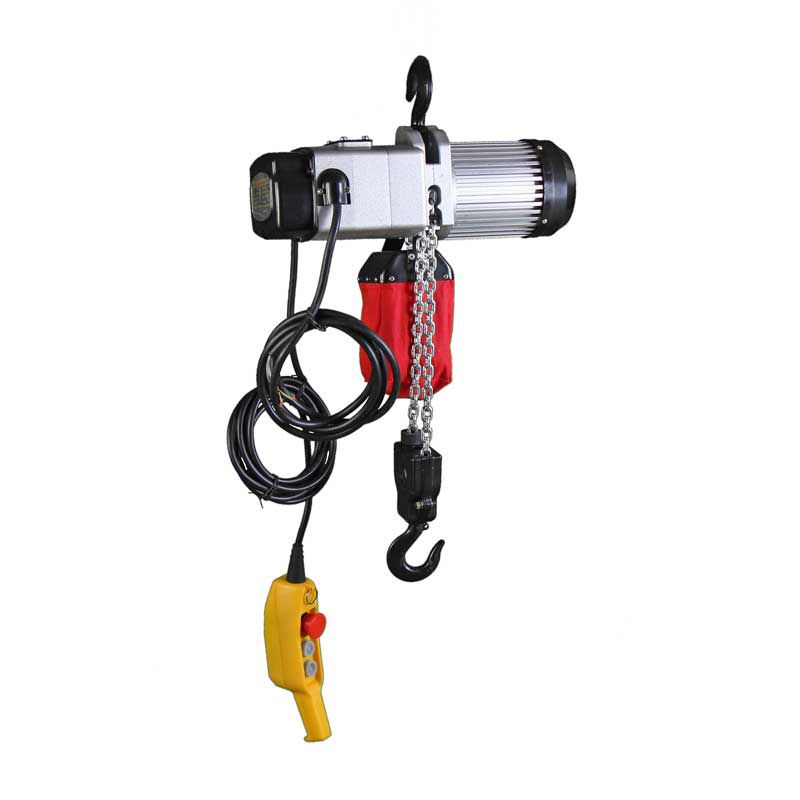

Features

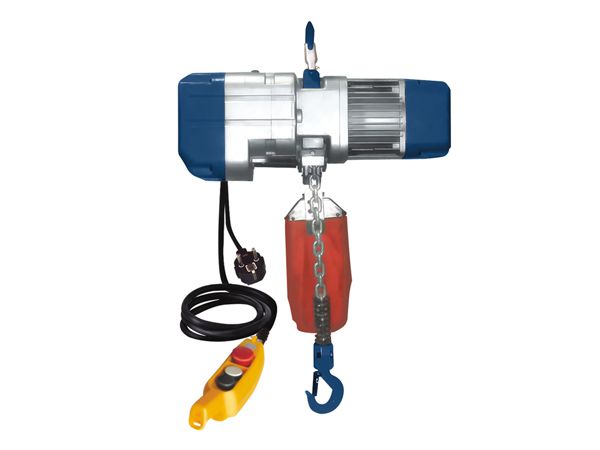

- The electric chain hoist is built with die-cast aluminum construction, which is featured by lightweight and compact structure;
- Designed with raise/lower limit switch and electromagnetic brake;
Inquiry
Technical Data
| Model | Rated load (kg) | Rated voltage (V) | Handel control voltage | Chain size (mm × m) | Motor power (kw) | Lifting speed (m/min) | Lifting height (m) | Working rate | Packaging size (mm) | Gross weight/ Net weight (kg) |
| (V.AC) | ||||||||||
| HHXG-HA0.5 | 500 | AC 100/110/120 220/230/240 50/60HZ | 24 | Φ8×24 | 0.65 | 5 | 3 | S3-30% 20min | 650×370×540 | 68/60 |
| HHXG-HA1 | 1000 | 2.5 | 70/62 | |||||||
| HHXG-KA1 | AC 230/380 420/440 50/60HZ | 1.1 | 5 | 68/60 | ||||||
| HHXG-KA2 | 2000 | 2.5 | 70/62 |
Inquiry
Technical Data
| Model | Rated load (kg) | Rated voltage (V) | Chain size (mm×m) | Motor power (kw) | Lifting speed (m/min) | Lifting height (m) | Working rate | Packaging size (mm) | Net weight (kg) |
| HHXG-KB500 | 500 | AC380 50/60Hz | Φ5×15 | 0.4 | 4 | 3 | S3-30% 20min | 490×210×290 | 25 |
| HHXG-KB250 | 250 | 8 | 23 | ||||||
| HHXG-HB500 | 500 | AC230 50/60Hz | 4 | 25 | |||||
| HHXG-HB250 | 250 | 8 | 23 |
