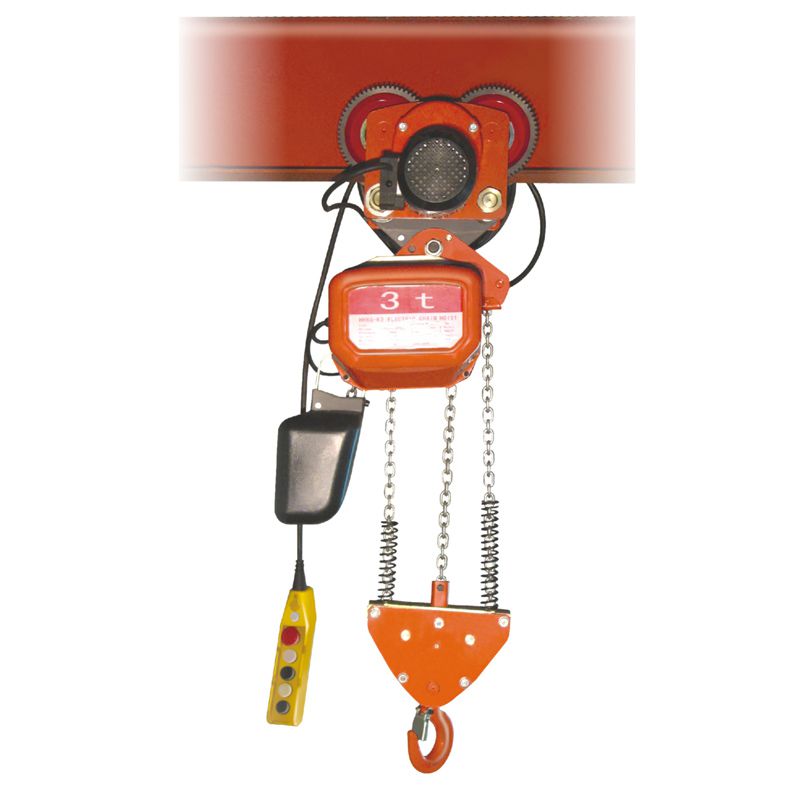

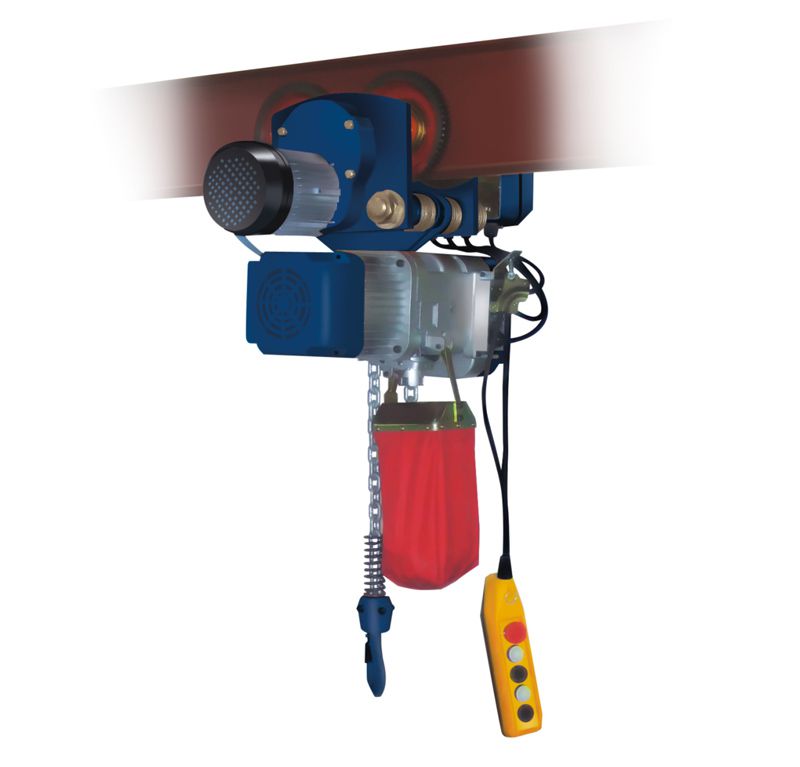

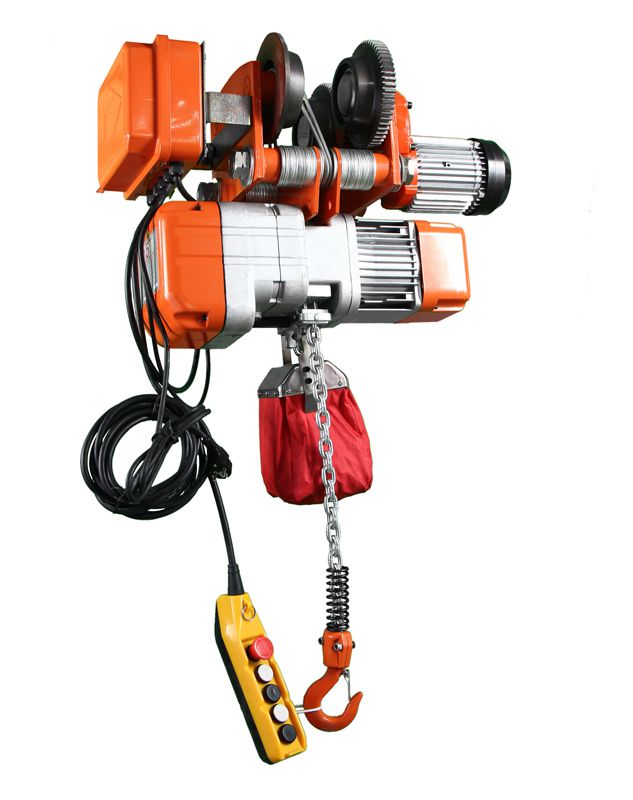

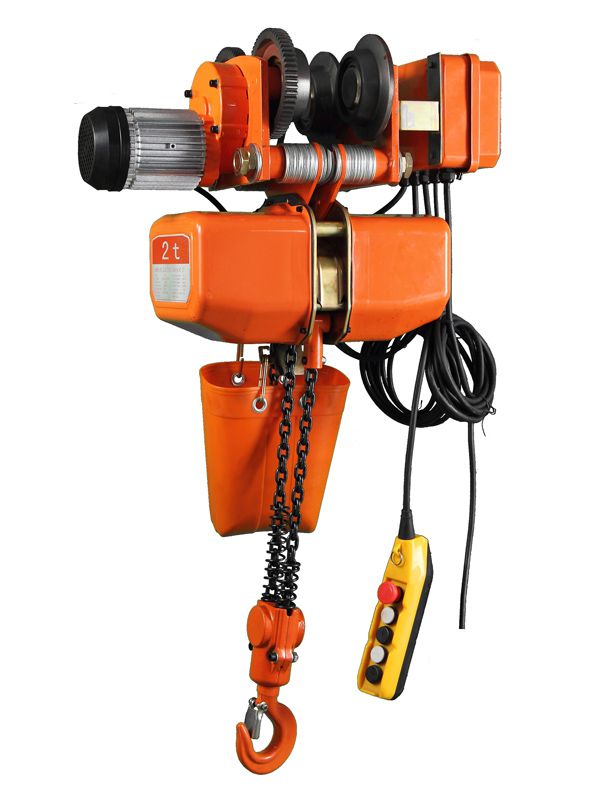

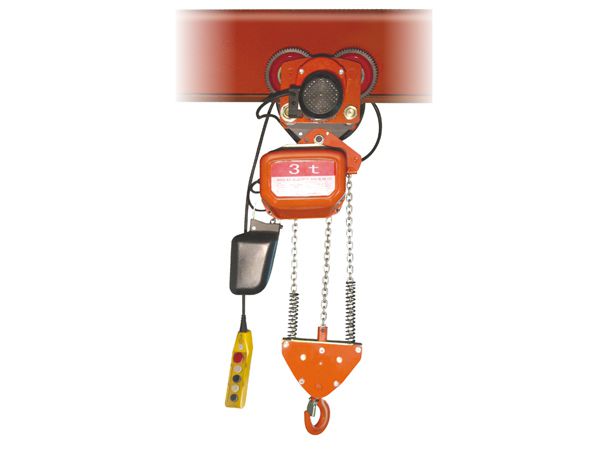

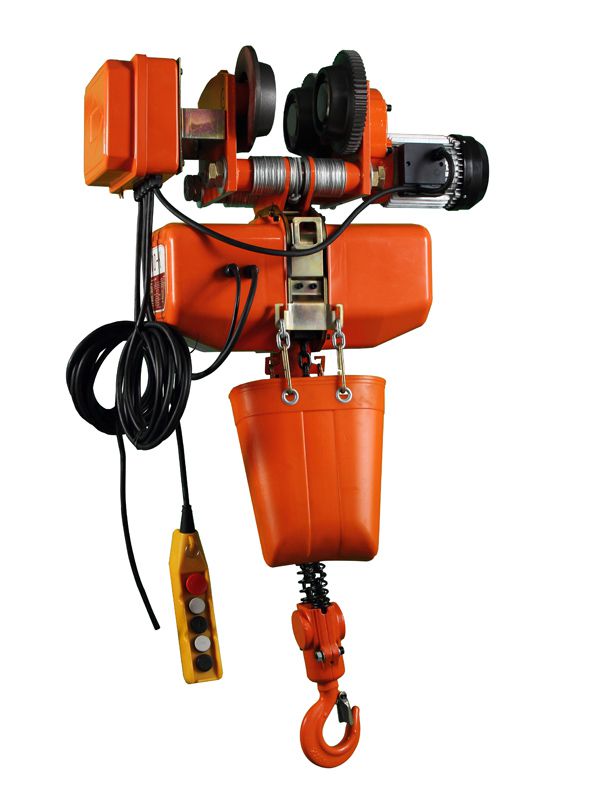

Electric Chain Hoist with Trolley, HHDD Series
Model
- HHDD-K1
- HHDD-K2
- HHDD-K3
- HHDD-H0.5
- HHDD-H1
- HHDD-HA0.5
- HHDD-HA1
- HHDD-KA1
- HHDD-KA2
Features
- The electric chain hoist has a stamped steel construction for rigorous use;
- Compact structure makes the hoist easy for material lifting;
- Designed with raise/lower limit switch, phase sequence protecting unit and electromagnetic brake;
Inquiry
Technical Data
| Model | Rated load (kg) | Lifting height (m) | Lifting speed (m/min) | Chain size (mm×m) | Rated voltage (V) | Hoist motor (kw) | Trolley motor (kw) | Cross travel speed (m/min) | Control voltage (V.AC) | Min. radius curve (m) | I-beam type | Rail width (mm) | Working rate | Weight N.W. (kg) |
| HHDD-K1 | 1000 | 6 | 7.2 | Φ7.1 X21 | AC 230/380 420/440 50/60HZ | 1.5 | 0.6 | 20 | 24 | 2 | 20a ~45a | 100 -150 | S3-30% 20min | 144/126 |
| HHDD-K2 | 2000 | 3 | 3.6 | 146/128 | ||||||||||
| HHDD-K3 | 3000 | 2.4 | 160/142 | |||||||||||
| HHDD- H0.5 | 500 | 6 | 7.2 | AC 100/110 120/220 230/240 50/60HZ | 0.85 | 0.45 | 146/128 | |||||||
| HHDD- H1 | 1000 | 3 | 3.6 | 144/126 | ||||||||||
| HHDD-HA0.5 | 500 | 3 | 5 | Φ8×24 | AC 100/110/120 220/230/240 50/60Hz | 0.65 | 0.45 | 20 | 24 | 2 | 20a ~45a | 100-150 | S3-30% 20min | 136/118 |
| HHDD-HA1 | 1000 | 2.5 | 142/124 | |||||||||||
| HHDD-KA1 | 5 | AC 230/380 420/440 50/60Hz | 1.1 | 0.6 | 136/118 | |||||||||
| HHDD-KA2 | 2000 | 2.5 | 142/124 |
