Model | Units | KX-CDD-B-10 | KX-CDD-B-16 |
Rated capacity | kg | 1000 | 1600 |

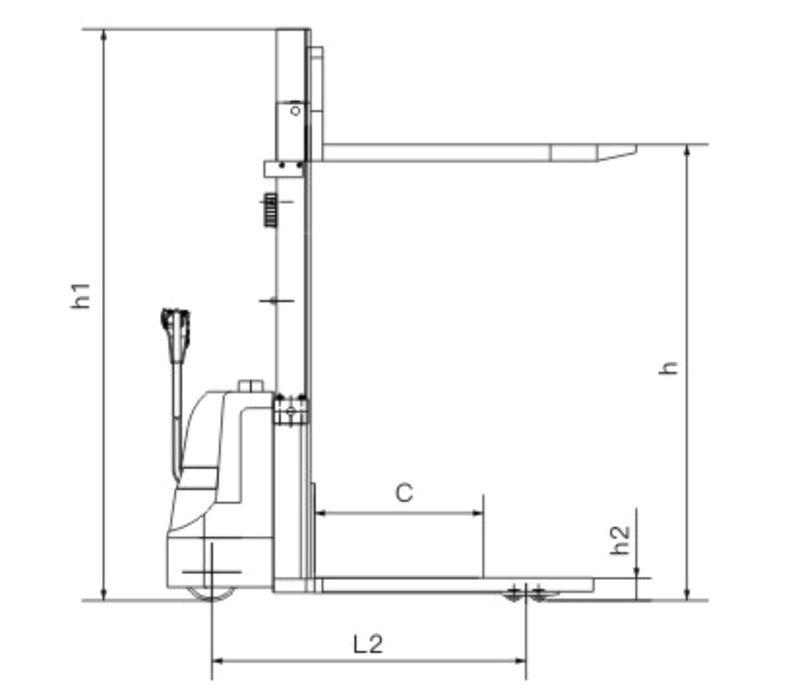

Lifting height | mm | 1600/2000/2500/3000/3500 |
Lowered mast height | mm | 2060/1568/1818/2068/2318 |
Extended mast height | mm | 2060/2568/3060/3560/4068 |
Fork length | mm | 1150 |
Fork width | mm | 695 |
Overall length | mm | 1755 |
Overall width | mm | 800 |
Turning radius | mm | 1360 |
Loading wheel | mm | Φ80x70 |
Driving wheel | mm | Φ180x50 |
Distance between front wheel and rear wheel | mm | 1160 |
Travel speed (unladen/ laden) | Km/h | 4.5/4 |
Lifting speed (unladen/ laden) | mm/s | 150/100 |
Lowering speed (unladen/ laden | mm/s | 130/150 |
Lift motor | kw | 2.2 |
Drive motor | kw | 0.75 |
Battery voltage/capacity | V/Ah | 2x12/80 |
Drive control | | DC-speed controller |
Net weight | Kg | 422/457/464/487/517 | 430/475/493/513/536 |
