2000-15000 LBS. Electric Winch
Model
- KDJ-2000R

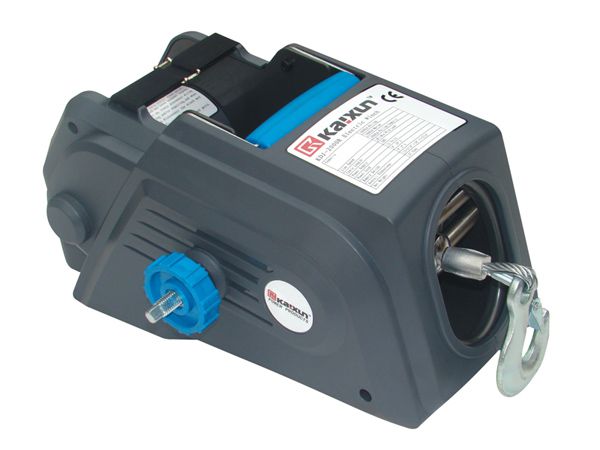

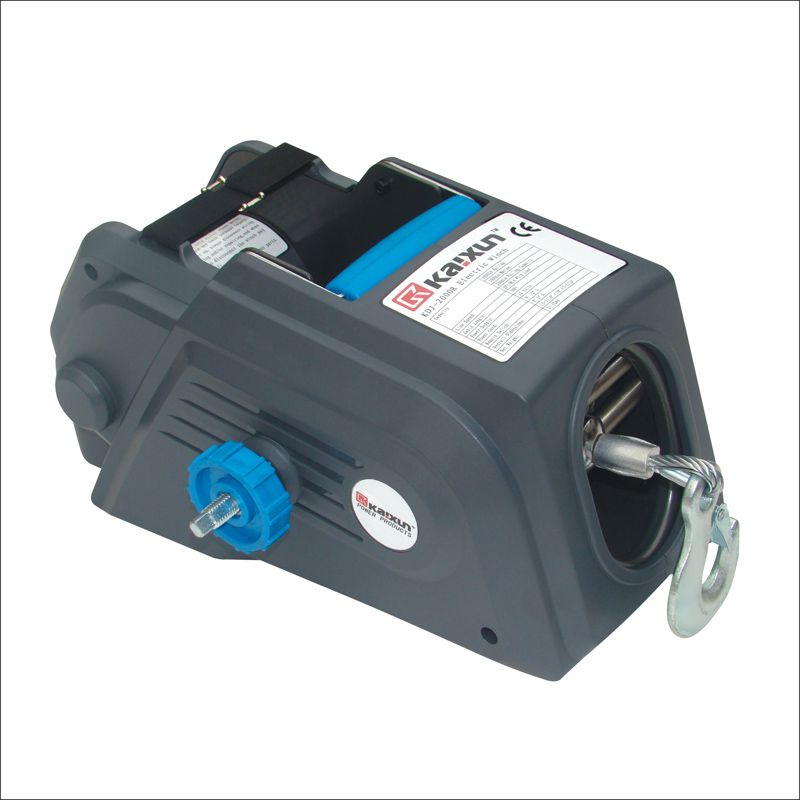

- KDJ-2000G
- KDJ-2500G

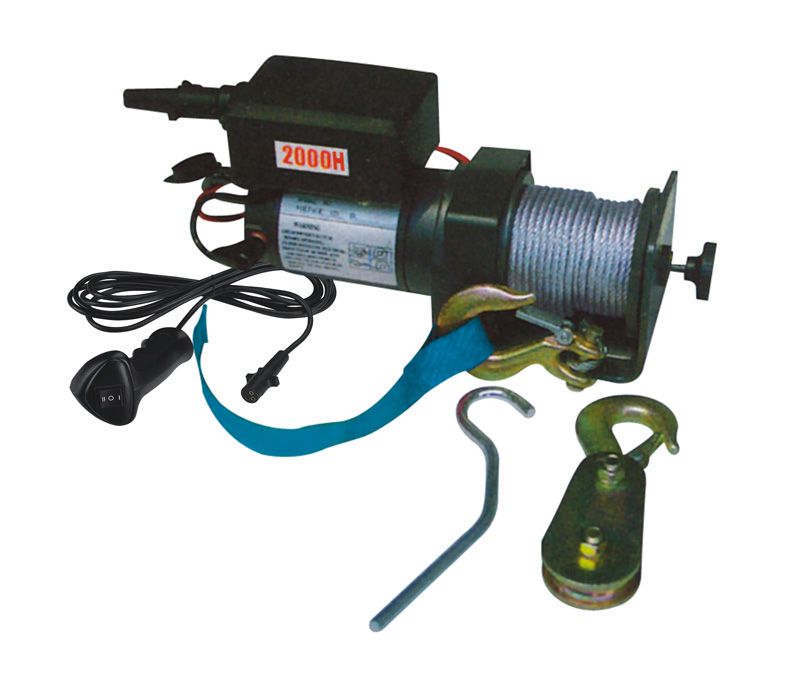

- KDJ-2000H
- KDJ-2500H
- KDJ-3000H
- KDJ-3500H
- KDJ-3500K
- KDJ-4500K
- KDJ-5000N
- KDJ-5000L
- KDJ-6000N
- KDJ-6000L
- KDJ-8000N
- KDJ-8000L
- KDJ-9000N
- KDJ-9000L
- KDJ-10000N
- KDJ-10000L
- KDJ-12000L

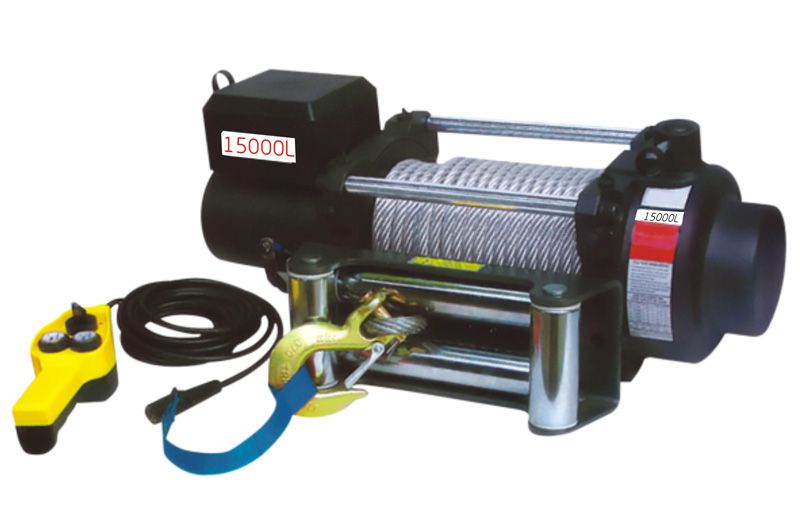

- KDJ-15000L
Inquiry
Technical Data
| Model | Voltage (v) | Input power (kw) | Max. pulling force (lbs) | Wire rope (Φmm x m) | Packaging quantity (pcs) | Packaging size (mm) | Gross weight/net weight (kg) |
| KDJ-2000R | DC12 | 0.3 | 2000 | 5.6X9 | 2 | 470×275×235 | 27/26 |

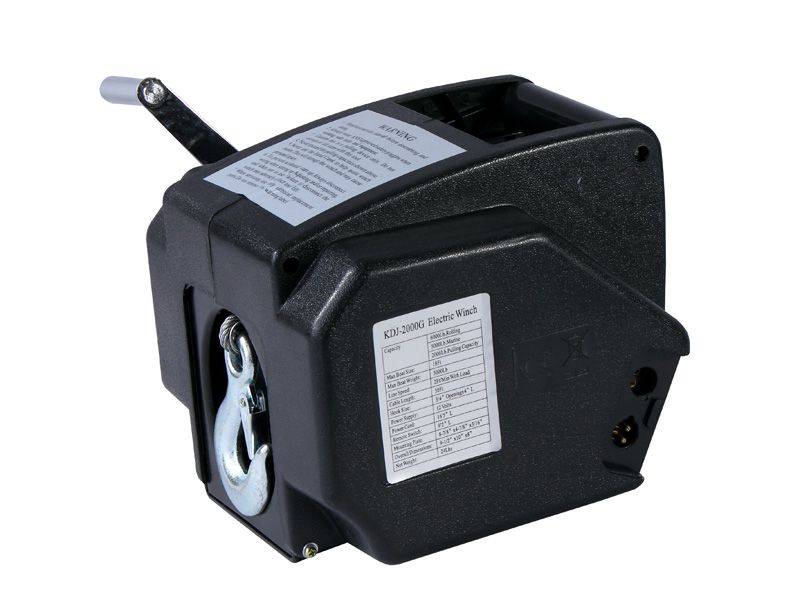

| KDJ-2000G | 0.3 | 2000 | 4.8X9 | 590×295×310 | 23/22 | ||
| KDJ-2500G | 0.4 | 2500 | |||||
| KDJ-2000H | 1.8 | 2000 | 4.8X14 | 1 | 395×270×210 | 10/9 | |

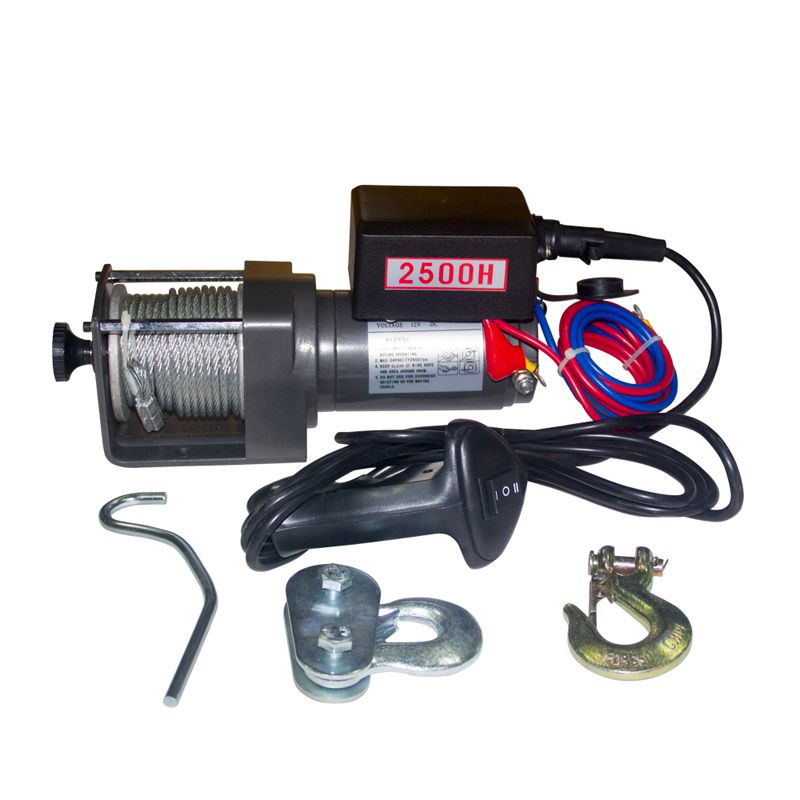

| KDJ-2500H | 2.2 | 2500 | |||||
| KDJ-3000H | 1.8 | 3000 | 5.6X13 | 12/11 | |||

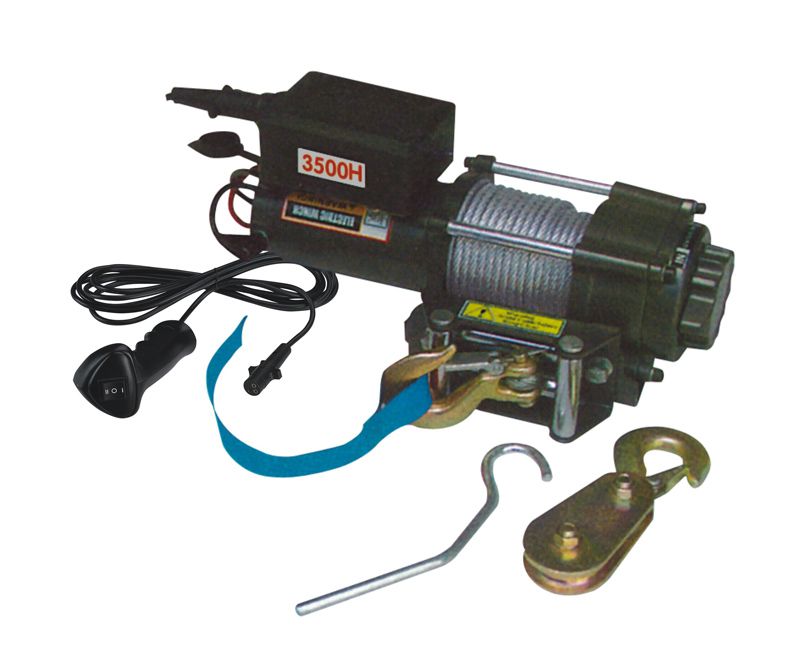

| KDJ-3500H | 2.2 | 3500 | |||||
| KDJ-3500K | 2.76 | 3500 | 6X15 | 470×280×220 | 19/18 | ||

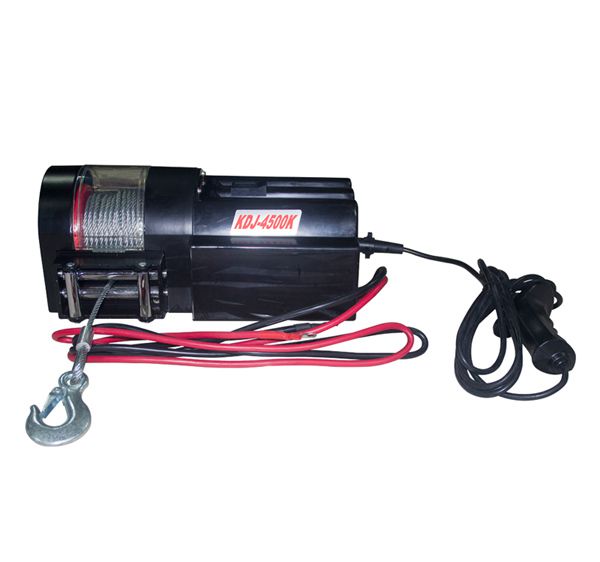

| KDJ-4500K | 3.72 | 4500 | |||||
| KDJ-5000N | 3.2 | 5000 | 6×24 | 530×330×330 | 27/26 | ||
| KDJ-5000L | 26/25 | ||||||

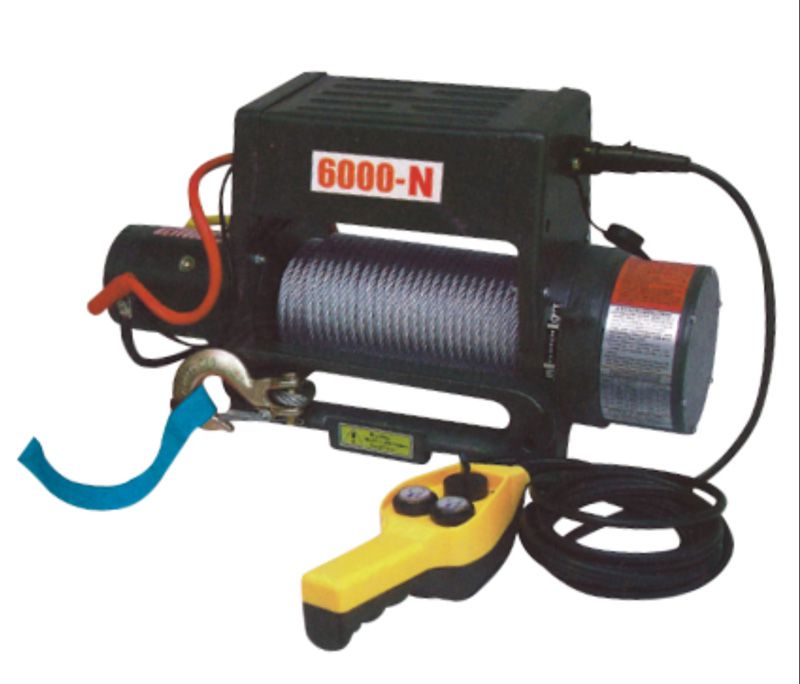

| KDJ-6000N | 3.6 | 6000 | 7.2×32 | 640×330×330 | 33/32 | ||
| KDJ-6000L | 32/31 | ||||||
| KDJ-8000N | 3.4 | 8000 | 8×29 | 39/38 | |||

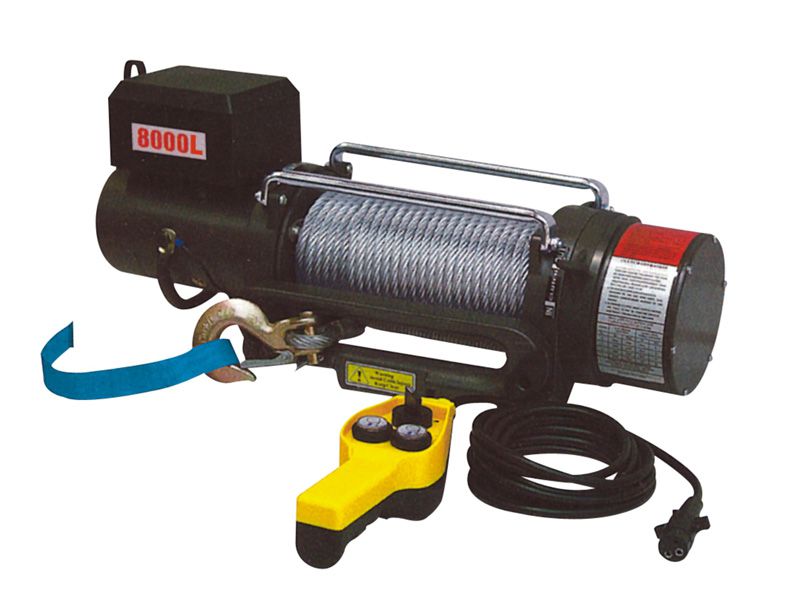

| KDJ-8000L | 36/35 | ||||||
| KDJ-9000N | 9000 | 8.3×29 | 39/38 | ||||
| KDJ-9000L | 36/35 | ||||||
| KDJ-10000N | 3.7 | 10000 | 9.2×26 | 41/39 | |||

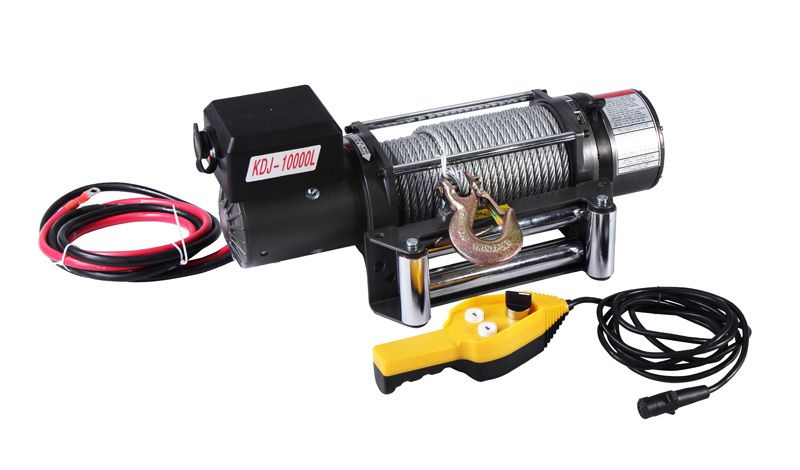

| KDJ-10000L | 38/37 | ||||||

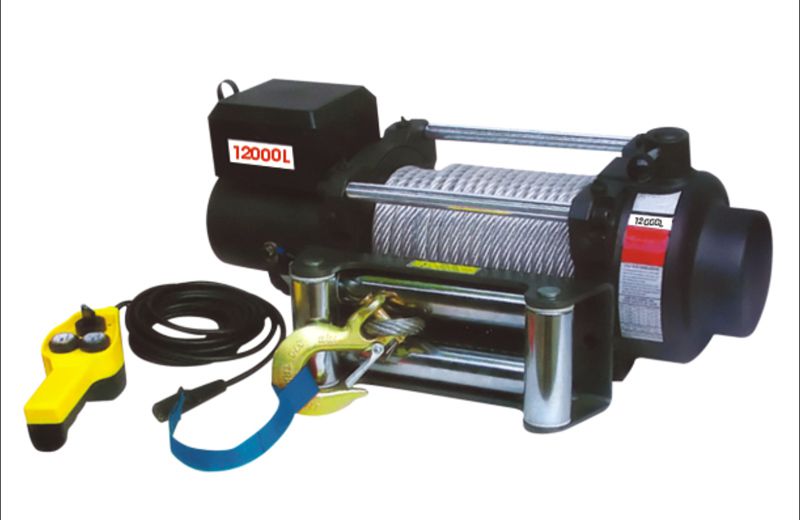

| KDJ-12000L | 12000 | 10.2×26.5 | 620×420×310 | 38/37 | |||
| KDJ-15000L | 4.2 | 15000 | 11×28 | 52/50 |
