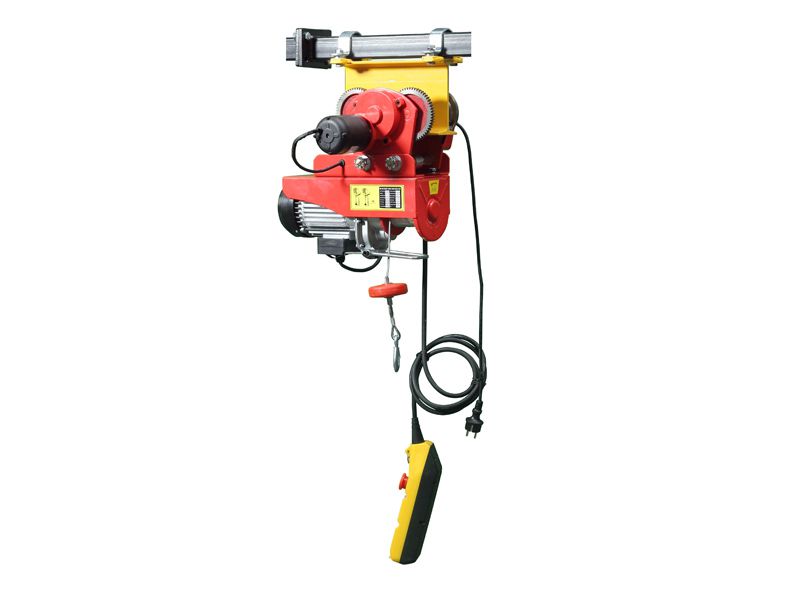

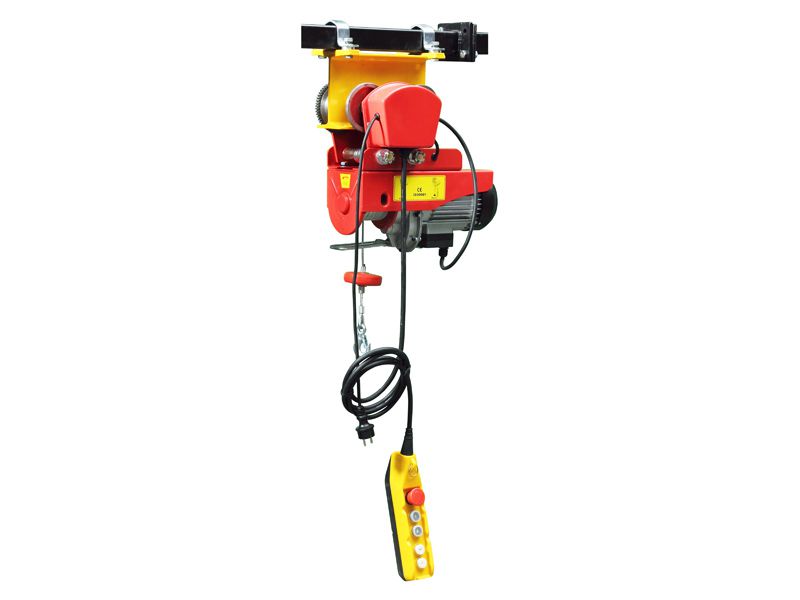

Electric Hoist with Motorized Trolley, HDGD Series

• The electric cable hoist is designed with emergency stop switch, forced disconnect switch and raise/lower limit switch;
• Protection rating of IP54;
• Thermal overload protection is available;

HDGD-200 — HDGD-1000 Technical Data

Inquiry

Model	Rated capacity (kg)	Rated voltage (V)	Lifting height (m)	Load capacity (t)	Cross travel speed (m/min)	Packaging quantity (pcs)	Packaging size (mm)	Gross weight/net weight (kg)
	Single hook/ double hook		Single hook/ double hook
HDGD-200	100/200	AC 100/110/120 50/60Hz	12/6	0.5	13	1	490×410×470	28/26
HDGD-250	125/250
HDGD-300	150/300
HDGD-400	200/400						540×480×480	35/33
HDGD-500	250/500							37/35
HDGD-600	300/600
HDGD-700	350/700	AC 220/230/240 50/60HZ		1				39/37
HDGD-800	400/800
HDGD-990	500/990						620×510×530	56/54

HDGD-200C—HDGD-1200C Technical Data

Inquiry

Model	Rated capacity (kg) Single hook/ double hook	Rated voltage (V)	Lifting height (m) Single hook/ double hook	Load capacity (t)	Cross travel speed (m/min)	Packaging quantity (pcs)	Packaging size (mm)	Gross weight/net weight (kg)
HDGD-200C	100/200	AC 100/110/120/220/230/240 50/60Hz	12/6	0.5	13	1	490×410×470	31/29
HDGD-250C	125/250
HDGD-300C	150/300
HDGD-400C	200/400							35/33
HDGD-500C	250/500							37/35
HDGD-600C	300/600			1			540×480×480
HDGD-700C	350/700	AC 220/230/240 50/60HZ						39/37
HDGD-800C	400/800
HDGD-1000C	500/990						620×510×530	56/54
HDGD-1200C	600/990
