| Model | Units | KX-CPD-B-10 | KX-CPD-B-15 |
| Rated capacity | kg | 1000 | 1500 |
| Lifting height | mm | 2000/2500/3000 | |

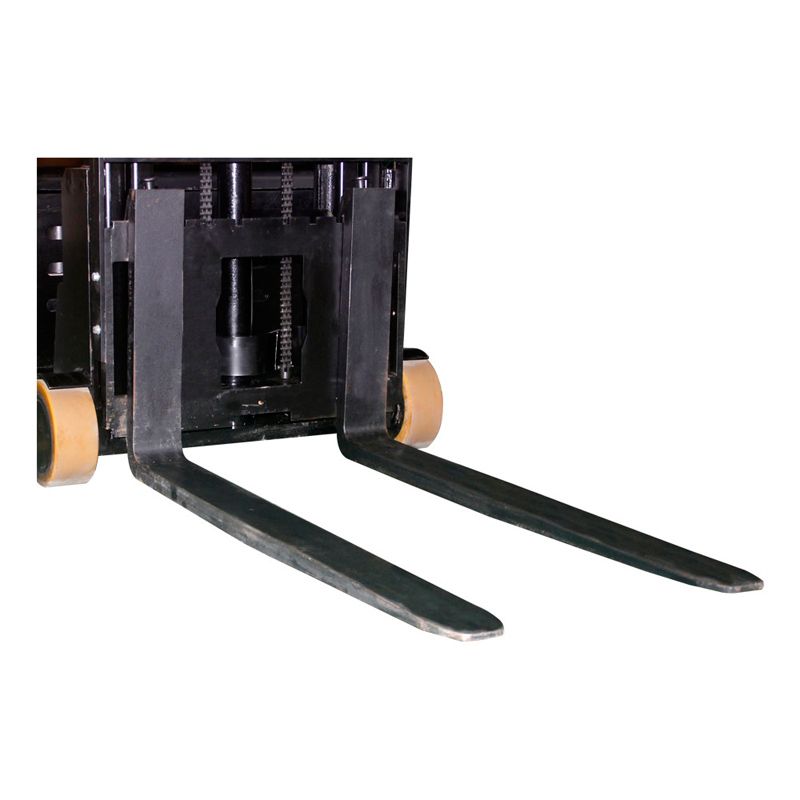

| Fork length | mm | 1150/1220 | |
| Fork width | mm | 660 | |
| Overall length (unfolded platform) | mm | 2950 | 3150 |
| Overall width | mm | 850 | |
| Lowered mast height | mm | 1568/1818/2068 | |
| Extended mast height | mm | 2568/3068/3568 | |
| Turning radius | mm | 1420 | |

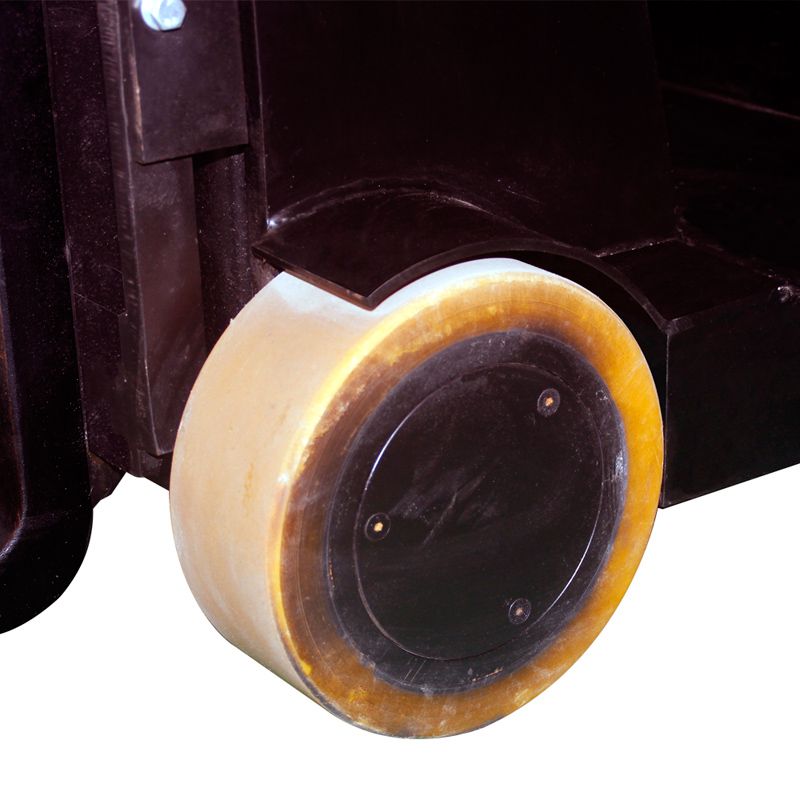

| Wheel material | Polyurethane | ||
| Front wheel size | mm | Φ210x80 | |
| Driving wheel size | mm | Φ250x75 | |
| Wheel base | mm | 1000 | 1200 |
| Travel speed (laden) | km/h | 5 | |
| Lifting speed (laden) | mm/s | 70 | |
| Gradeability (unladen/ laden) | ° | 6/4.5 | |
| Drive motor | kw | 1.8 | |
| Lift motor | kw | 2.2 | |
| Battery voltage/capacity | V/Ah | 2x12/150 | |
| Net weight/gross weight | kg | 1920 | 1903 |
