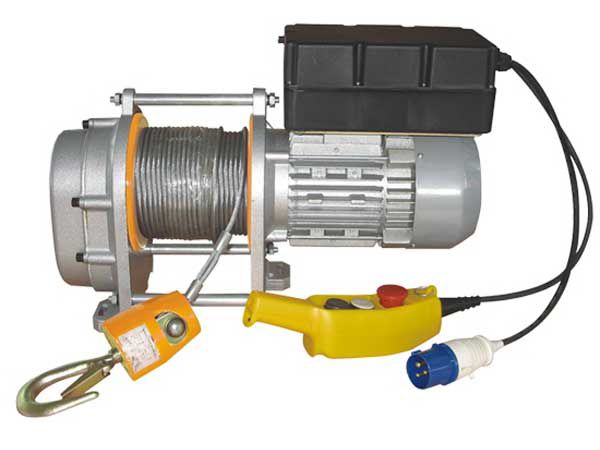

200-400KG Electric Windlass
Model
- KDJ-200F
- KDJ-250F
- KDJ-300F
- KDJ-300F1
- KDJ-400F1
Features
- Transmission structure
The hoist drum is connected to gearbox through two-stage geared coupling, allowing wire ropes to be easily adjusted and replaced. - Wire rope tightening
Put a P.T. screw into the hole of the drum to tighten the wire rope, it can efficiently prevent the wire rope from falling off. - Heavy duty brake
Electromagnetic brake with wear resistant brake disc is adopted, and it features a simple structure without adjusting brake air gap. The brake can be automatically and immediately activated during power failure to efficiently control the lowering of heavy loads, ensuring operation safety.
Inquiry
- Motor
The winch can be equipped with three-phase asynchronous motor or single-phase capacitor-run motor to ensure large starting torque, low temperature rise and prolonged service life. All motors are with class B insulation. - Gear
The gears are made of high grade steel which is hardened by heat treatment and precisely processed, featuring good wear resistance, low noise, high efficiency and excellent mechanical performance. - Control system
The handle is designed with low voltage control and protection rating of IP65, guaranteeing a reliable safety.
Technical Data
| Model | Rated capacity (kg) | Rated speed (m/min) | Lifting height (m) | Wire rope diameter (mm) | Wire rope length (m) | Work level | Motor (kw) | Voltage (v) | Frequency (Hz) | Net weight (kg) |
| KDJ-200F | 200 | 10-15/12-18 | 38 | Φ6 | 40 | M3 | 0.75×4 | AC100/110/ 120/220/ 230/240 | 50/60 | 40 |
| KDJ-250F | 250 | 44 | ||||||||
| KDJ-300F | 300 | 1.1×4 | 53 | |||||||
| KDJ-300F1 | 300 | 10-15 | Three phase 230/380/415/ 440/480 | 52 | ||||||
| KDJ-400F1 | 400 | 12-18 | 1.5×4 | 55 |
