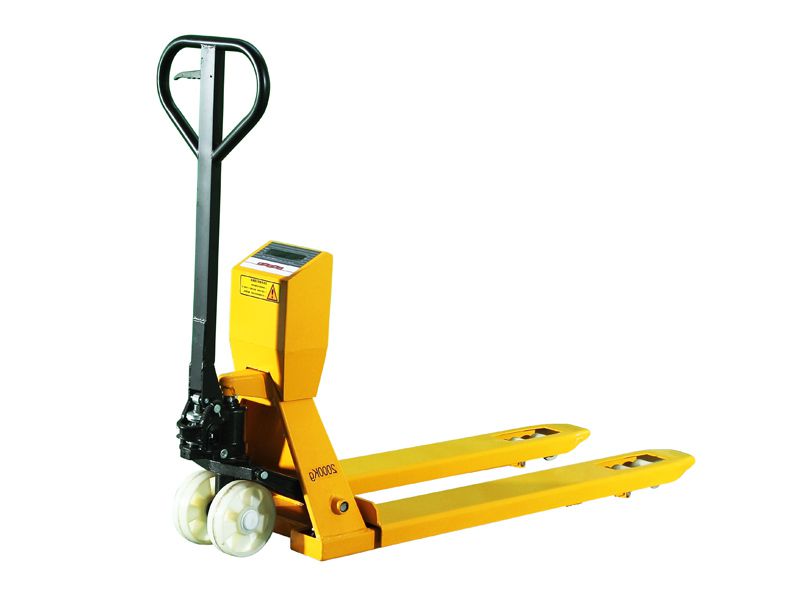

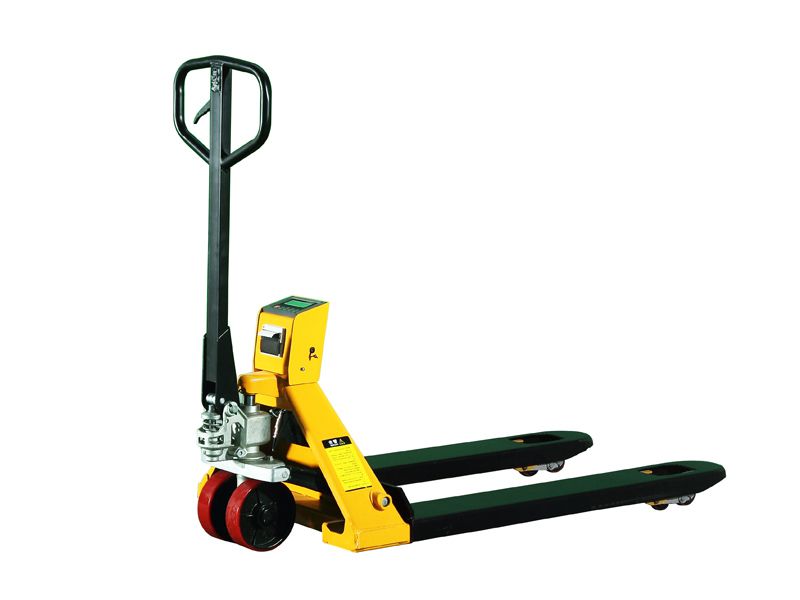

Hand Pallet Truck with Scale System, KX-DZC20/30
Model
Lifting Capacity
Features

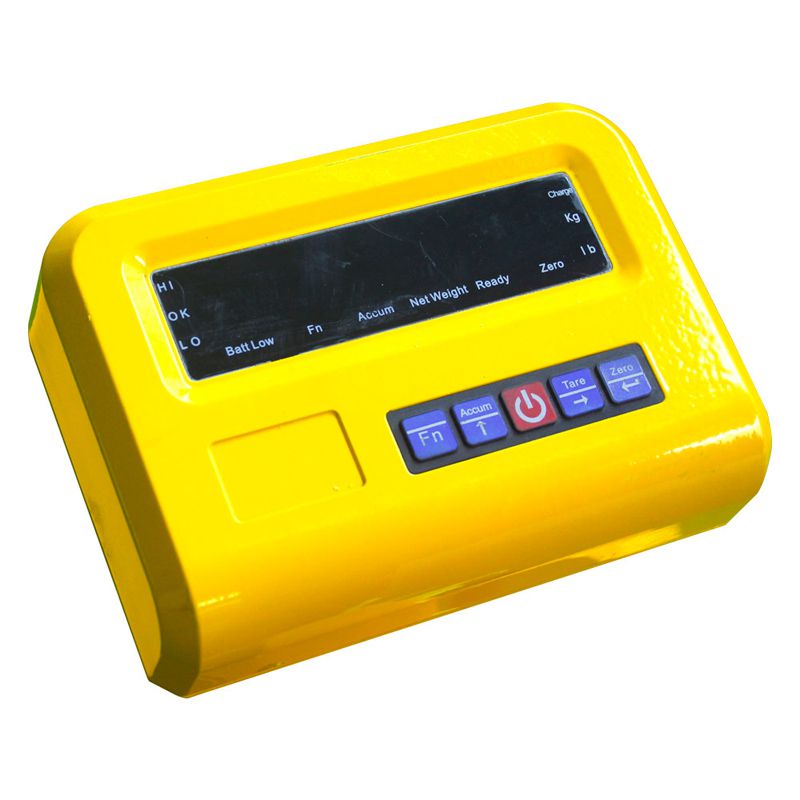

- The hand pallet truck has a weighing scale with high precision digital display;
- Adopting high accuracy weighing sensor with international weighing standards to ensure highly accurate weight measurement, the accuracy reaches 0.1%; the weighing scale has a multitude of weighing functions such as tare function and totals memory, and it is shockproof, dustproof and waterproof;
- Suitable for simultaneous handling and weighing of pallets and cargos;
Technical Data
Model | Units | KX-SDC-20 | KX-SDC-30 |
Rated capacity | kg | 2000 | 3000 |

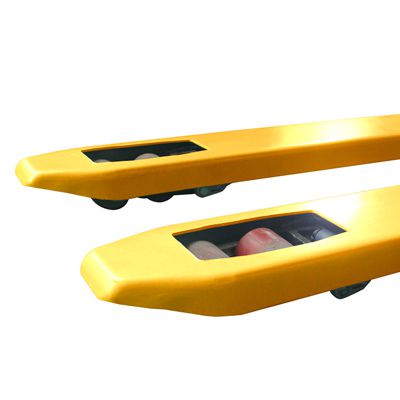

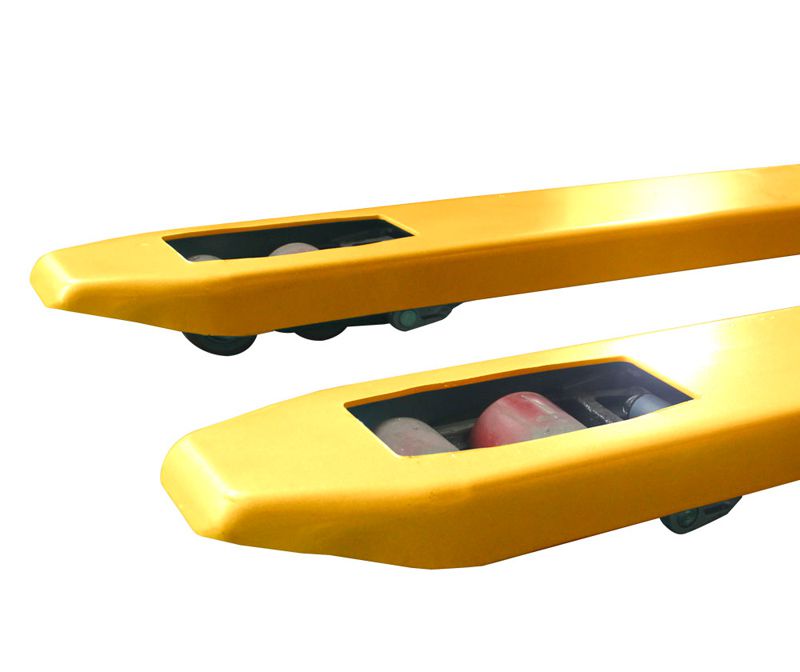

Load roller | mm | Φ75x60 | Φ80x70 |

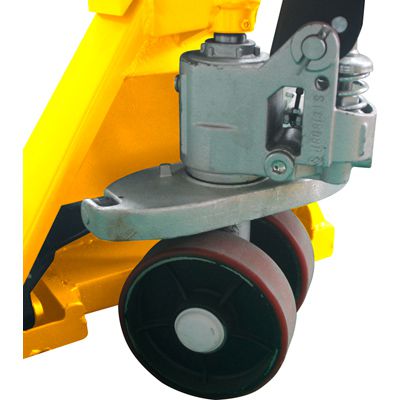

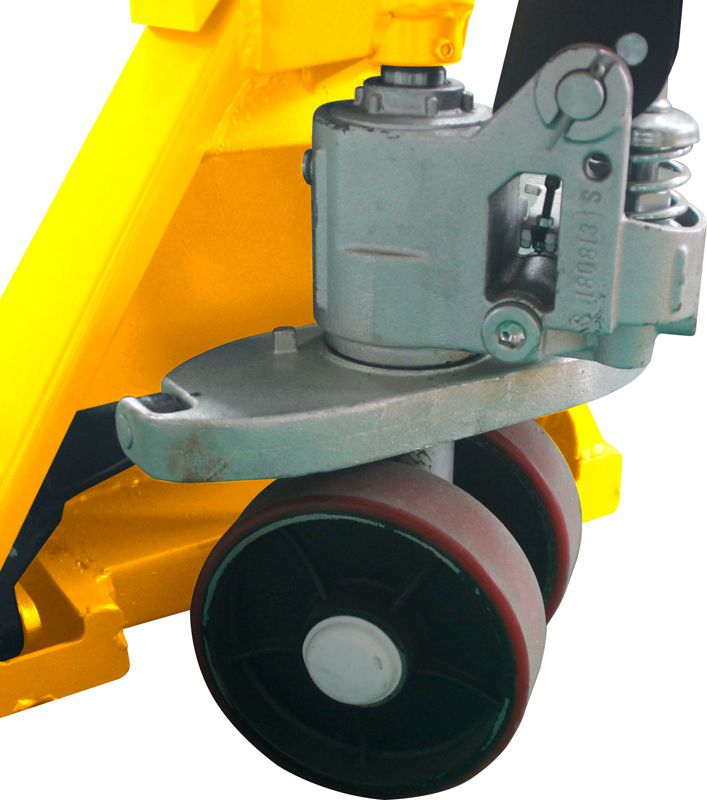

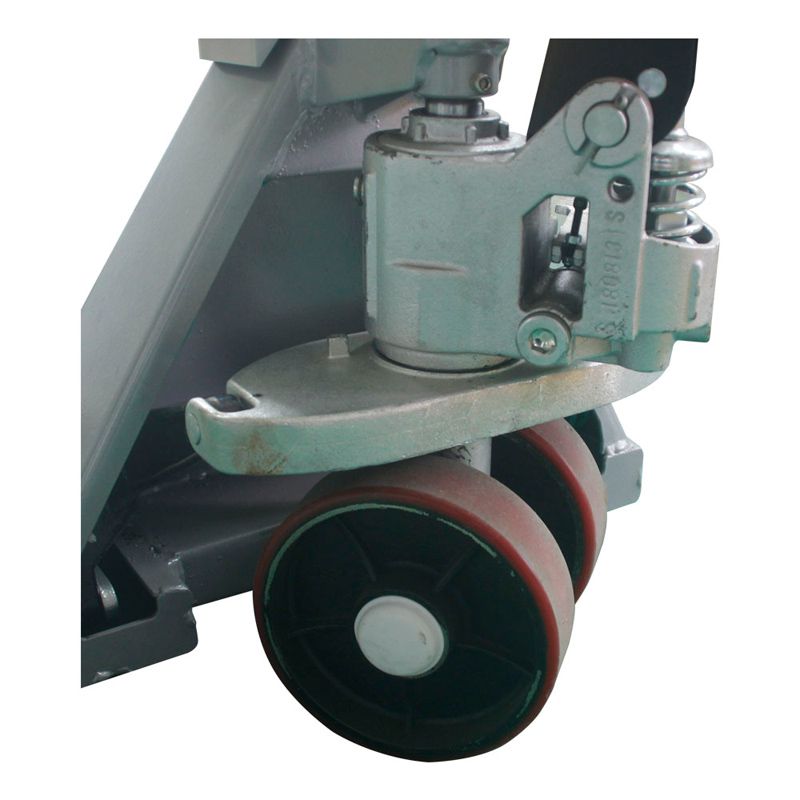

Steering wheel | mm | Φ160x50 | Φ180x50 |
Min. fork height | mm | 85 | 88 |
Max. fork height | mm | 200 | 203 |
Fork size | mm | 55x160 |
Fork length | mm | 1150/1220 |
Fork width | mm | 540/685 |
Overall length | mm | 1550/1620 |

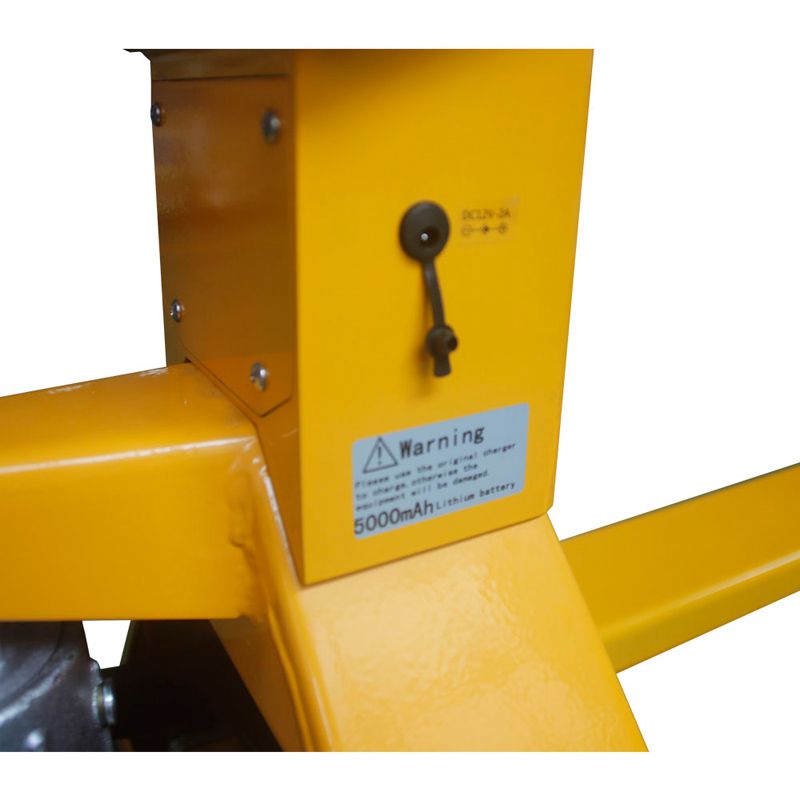

Battery | V/Ah | 7.4/4 |
Operating time | h | 40 |
Battery type | | lithium-ion battery |
Display | | LCD display |
Net weight/gross weight | Kg | 92.5/94 96.5/98 | 100.5/102 108/110 |
Details
