Model | KDJ-5000E1 | KDJ-10000E1 |
Rated capacity (kg) | 5000 | 10000 |
Rated speed (m/min) | 11 | |
Lifting height (m) | 192 | 235 |
Wire rope diameter (mm) | Φ22 | Φ32 |
Wire rope length (m) | 200 | 250 |
Work level | M3 | |
Motor (kw) | 15 | 22 |
Number of poles | 4 | 6 |
Voltage (v) | Three Phase 230/380/415/440/480 | |
Frequency (Hz) | 50/60 | |
Net weight (kg) | 1500 | 3000 |

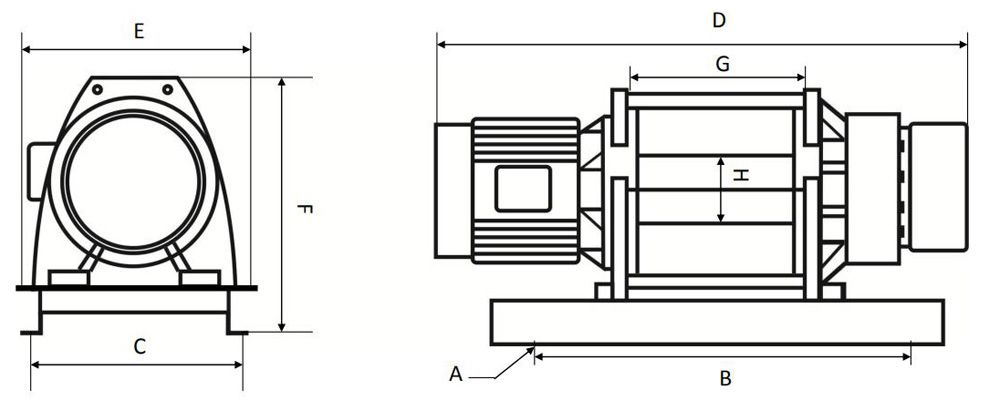

Model | KDJ-5000E1 | KDJ-1000E1 |
Symbol | ||
A | 6-Φ24 | |
B | 920 | 1600 |
C | 950 | 950 |
D | 1860 | 2450 |
E | 1010 | 1050 |
F | 1260 | 1260 |
G | 660 | 832 |
H | Φ300 | Φ450 |
