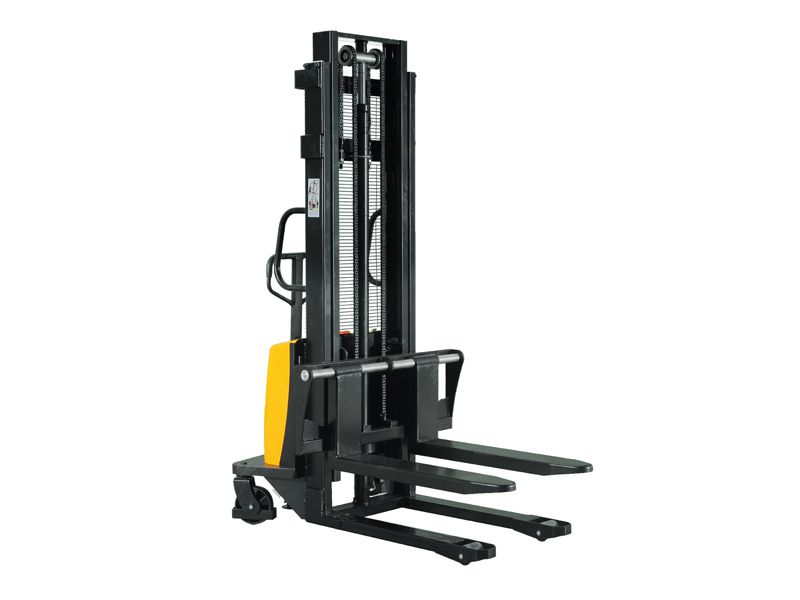

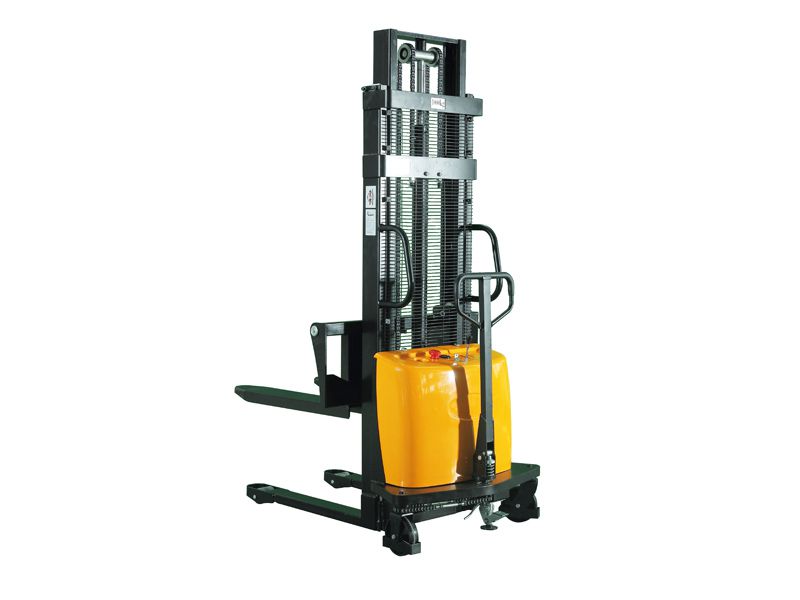

Semi-Electric Stacker, KX-CDSD
Model
- KX-CDSD10
- KX-CDSD15
- KX-CDSD20
Lifting Capacity
- 1000KG
- 1500KG
- 2000KG
Features
- Compact structure design;
- High quality hydraulic pump with high capacity batteries, durable and long service life;
- C-channel steel mast construction ensures robust structure and improved safety;
- Metal surface is treated by coating process, and housing is formed by plastic injection molding process to guarantee long-term durability;
Inquiry

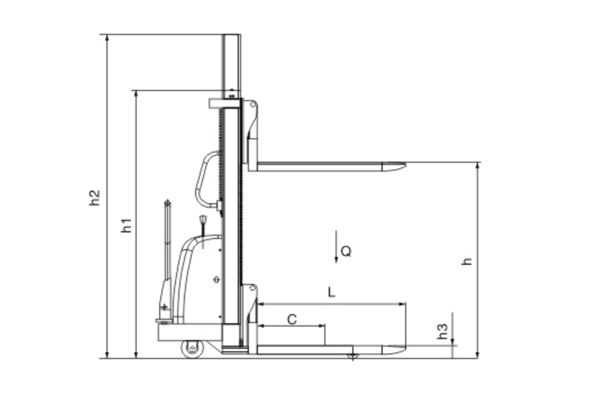

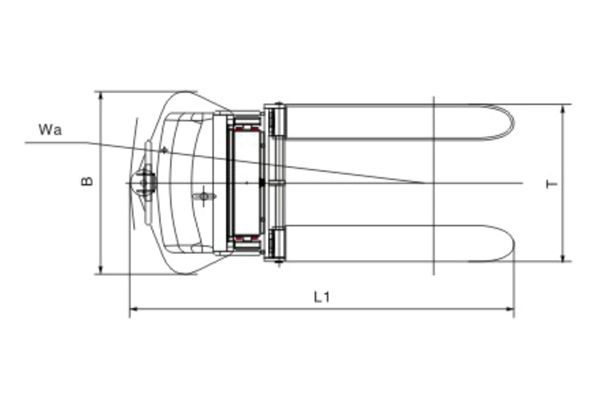

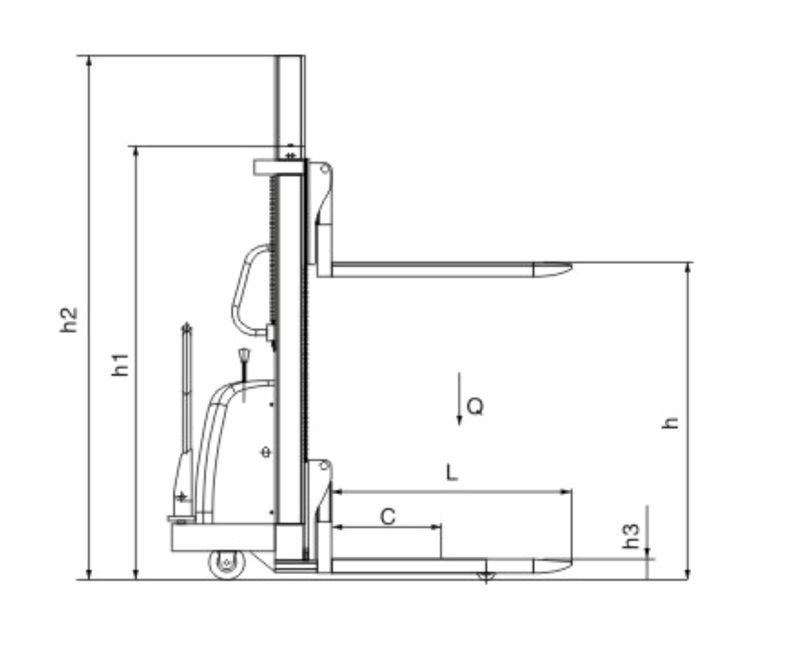

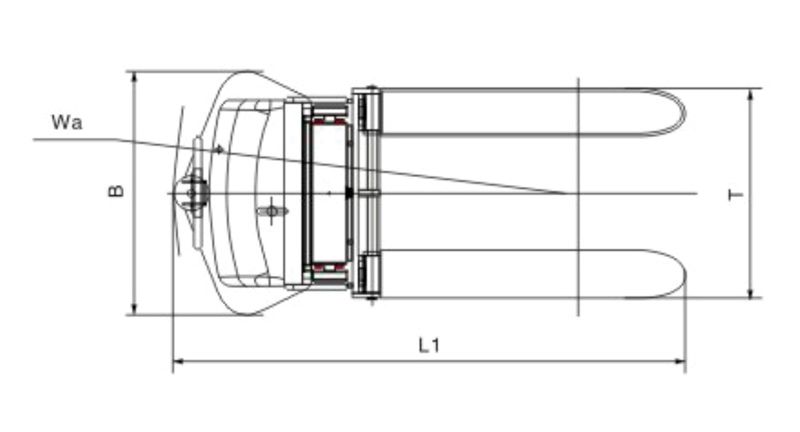

Technical Data
| Model | Units | KX-CDSD10 | KX-CDSD15 | KX-CDSD20 |
| Rated capacity | kg | 1000 | 1500 | 2000 |
| Lifting height | mm | 1600/2000/2500/3000/3500 | ||
| Lowered mast height | mm | 2068/1568/1818/2068/2318 | ||
| Extended mast height | mm | 2068/2568/3068/3568/4068 | ||
| Min. fork height | mm | 86 | ||
| Fork length | mm | 910 /1150 | ||
| Fork width (adjustable) | mm | 340~1000 | ||
| Overall length | mm | 1585 | ||
| Overall width | mm | 1045 | ||
| Turning radius | mm | 1480 | ||
| Load wheel | mm | Φ80x70 | ||
| Driving wheel | mm | Φ180x50 | ||
| Distance between front wheel and rear wheel | mm | 1200 | ||
| Lifting speed (unladen/ laden) | mm/s | 120/100 | ||
| Lowering speed (unladen/ laden) | mm/s | 130/150 | ||
| Lift motor | Kw | 1.6 | ||
| Battery | V/Ah | 12/100 | ||
| Net weight | Kg | 330/390/405/420/435 | 363/417/436/458/478 | 382/424/444/464/484 |

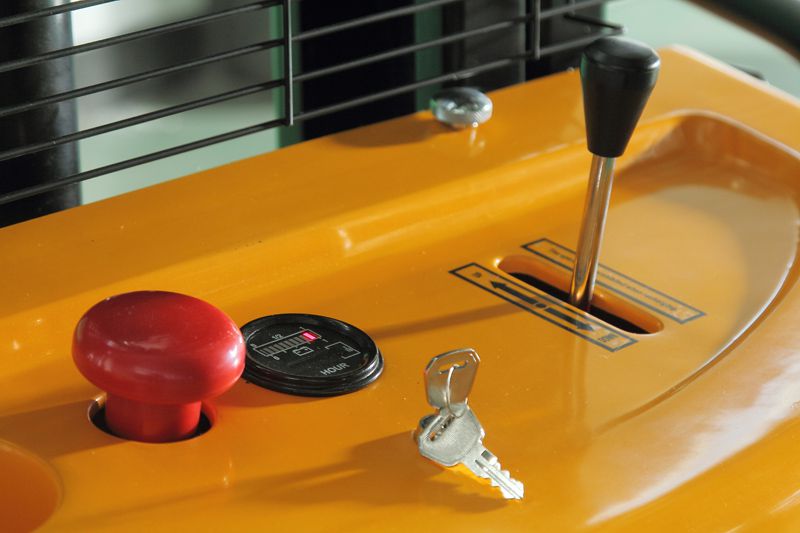

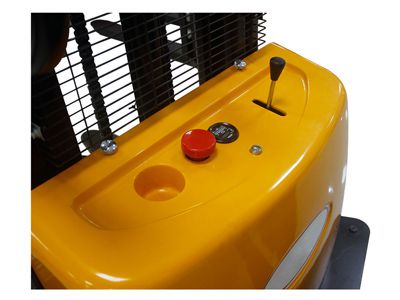

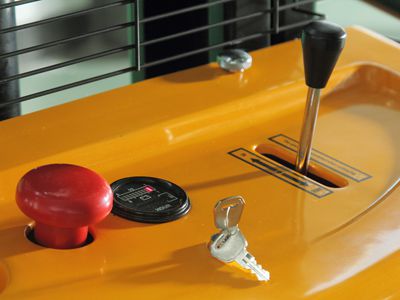

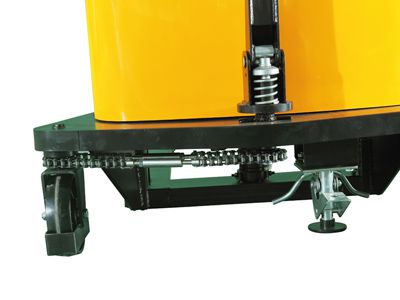

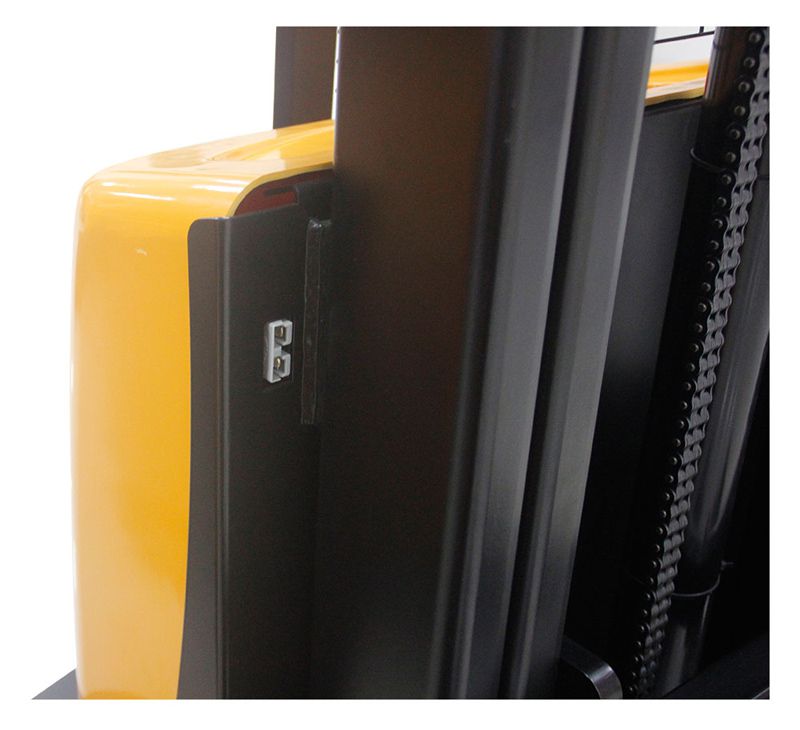

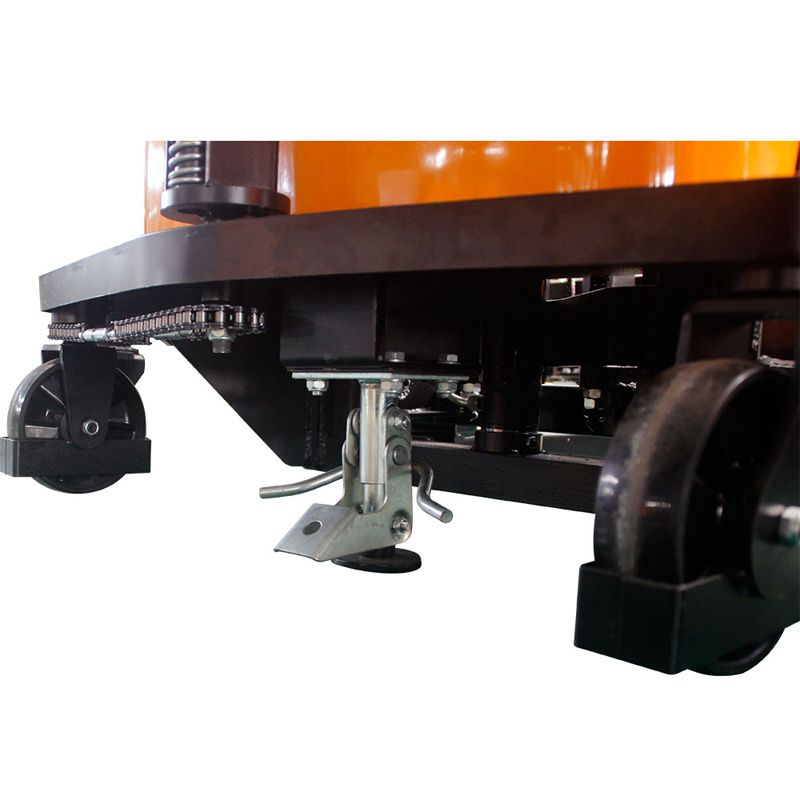

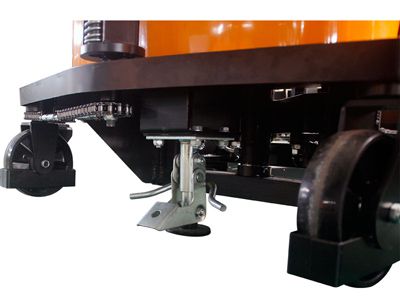

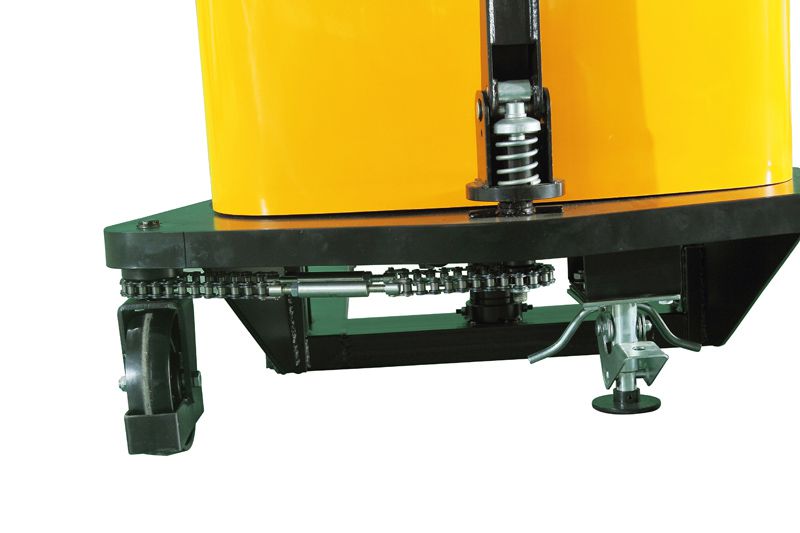

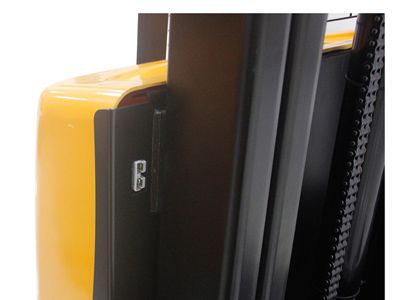

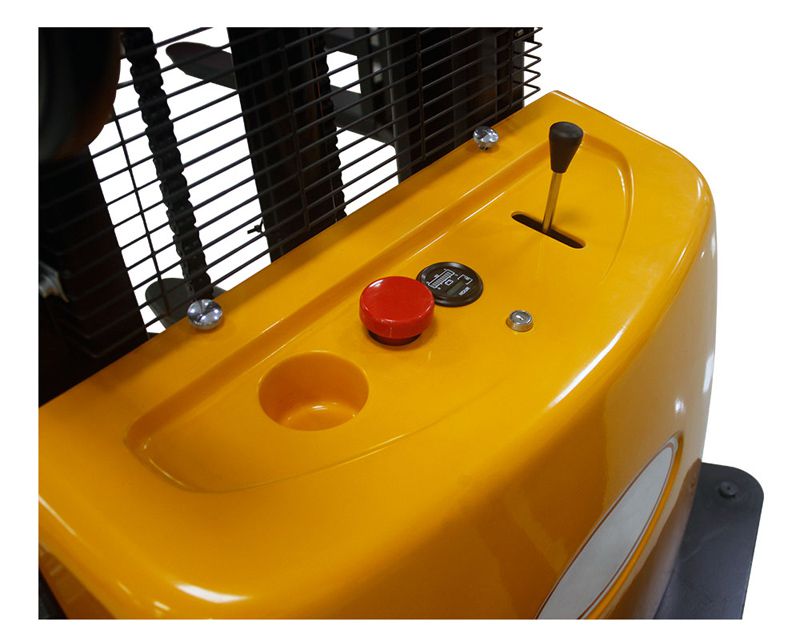

Details
