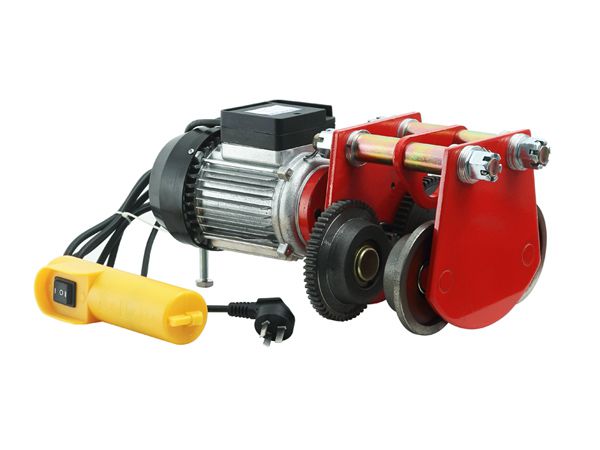

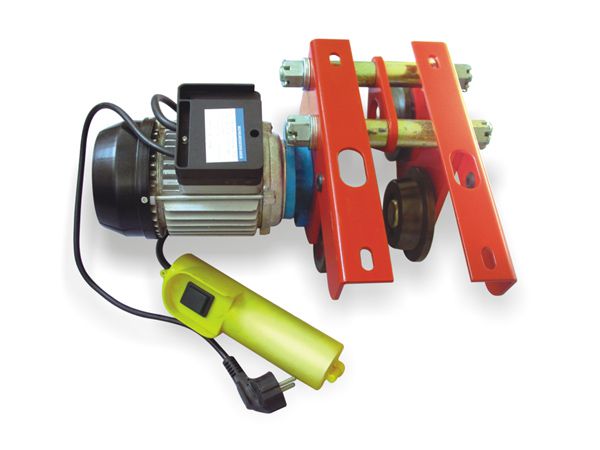

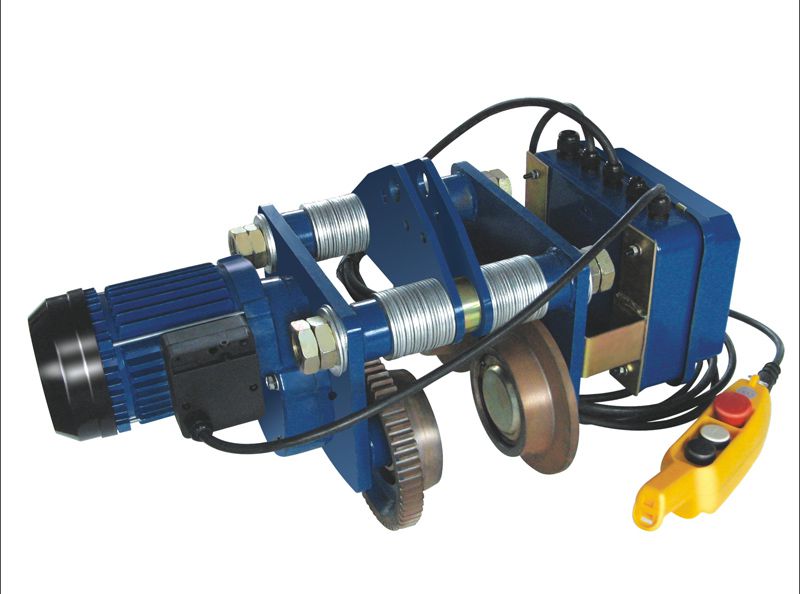

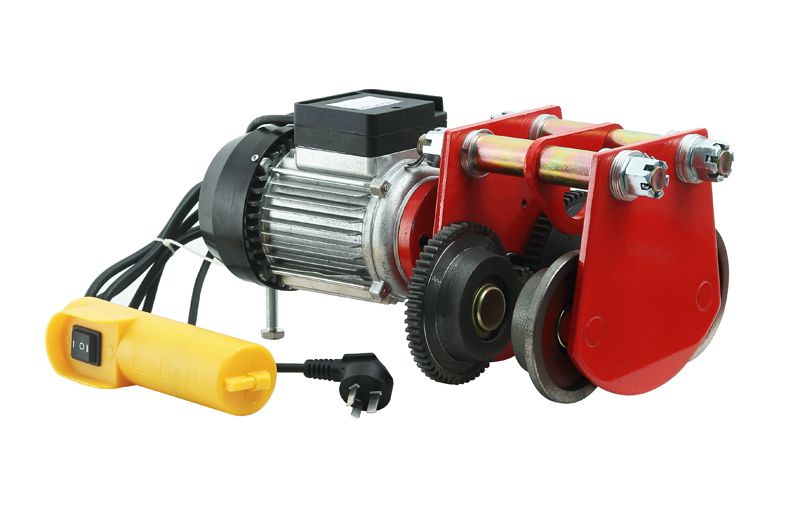

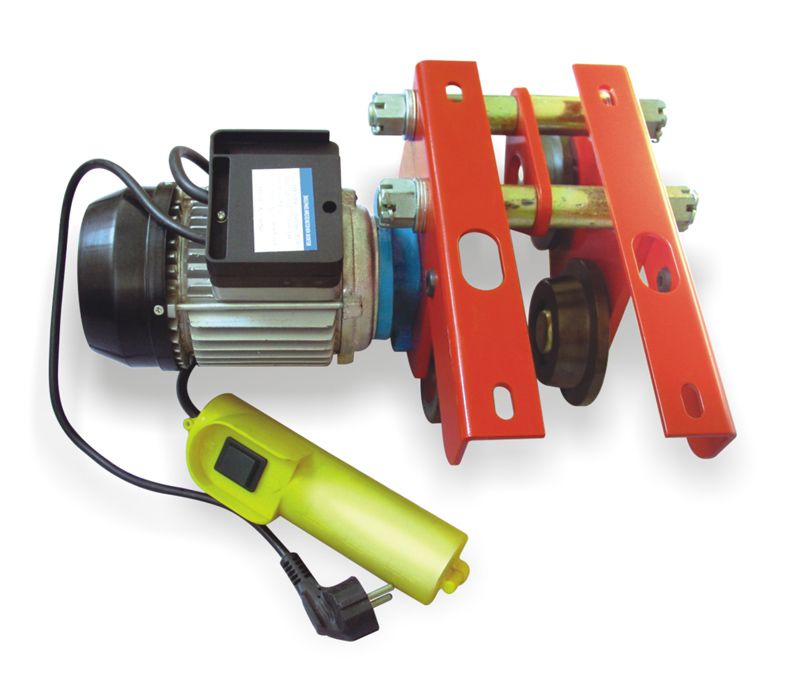

Motorized Trolley, TD Series

Our motor driven trolley is typically designed for operation on I-beams, and can be used in combination with electric chain hoist or manual cable hoist to form various cranes, such bridge crane, single-girder crane or jib crane. This I-beam trolley can be widely applicable to a variety of workplaces where hoist travel is required, including factories, mines, loading docks, warehouses, construction sites, as well as applications of mechanical processing, injection molding, die-casting, stamping, mold assembling, etc.

• Designed with emergency stop switch, forced disconnect switch and raise/lower limit switch;
• Protection rating of IP54;
• Thermal overload protection unit is equipped;

MODEL

• TD0.5
• TD1C

Inquiry

Technical Data

Model	Rated capacity (T)	Standard operation height (m)	Travel speed (m/min)	Motor			Min. radius curve (m)	Applicable I-beam		Net weight (kg)
				Rated voltage (V)	Rated power (W)	Rotation speed (r/min)		I-beam type(a)	Flange width (mm)
TD0.5	0.5	6	13	AC 100/110/120 220/230/240 50/60HZ	160	1400	1	10-18	68-94	14
TD1C	1				200		1.5	14-20	80-102	17

Model

• TD1
• TD1A

Inquiry

TD1 TD1A Technical Data

Model	Rated capacity (T)	Standard operation height (m)	Travel speed (m/min)	Motor			Min. radius curve (mm)	Applicable I-beam		Net weight (kg)
				Rated voltage (V)	Rated power (W)	Rotation speed (r/min)		I-beam type(a)	Flange width (mm)
TD1	1.0	6	13	AC 100/110/120 220/230/240 50/60HZ	540	1400	1.5	14-20	80-102	18
TD1A	1.2									19

Model

• TD1B
• TD3B

Inquiry

TD1B—TD3B Technical Data

Model	Rated capacity (kg)	Standard operation height (m)	Travel speed (m/min)	Motor			Min. radius curve (mm)	Applicable I-beam		Net weight (kg)	Control voltage (v)
				Rated voltage (V)	Rated power (W)	Rotation speed (r/min)		I-beam type(a)	Flange width (mm)
TD1B	1.0	3~6	20	AC 100/110/120 220/230/240 50/60HZ	480	2800	2	20a~45a	100-150	78/67	24
TD3B	3.0			AC 230/380/420/440 50/60HZ	600
