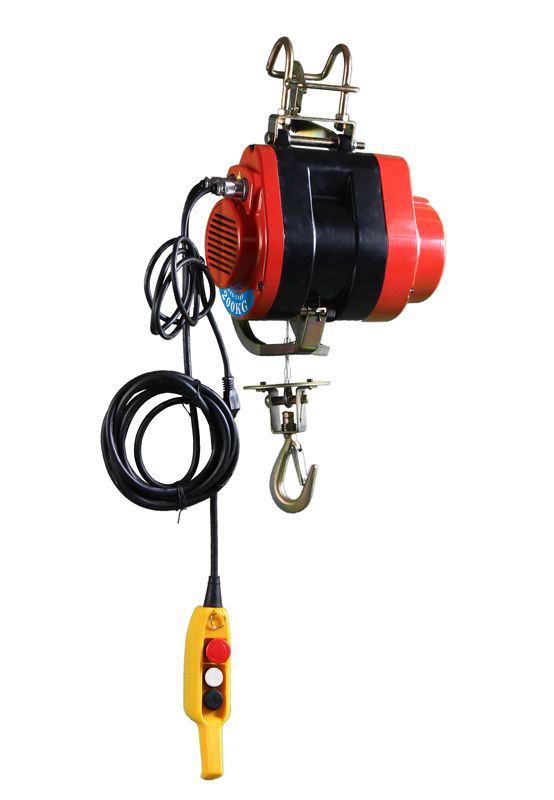

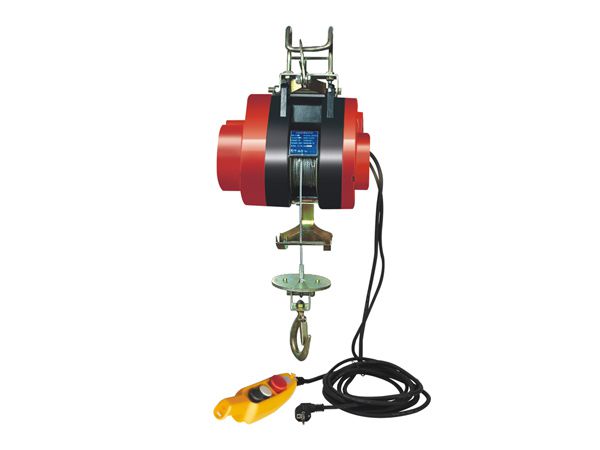

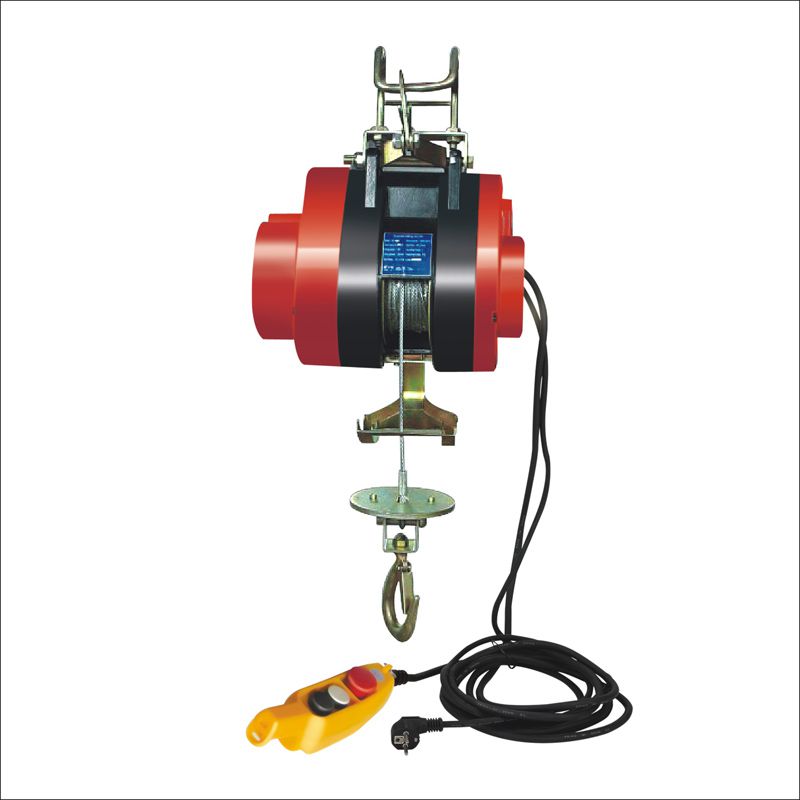

Hook Mounted Electric Hoist, HXS Series

Hook Mounted Electric Hoist, HXS Series
  • Hook Mounted Electric Hoist, HXS Series
  • Hook Mounted Electric Hoist, HXS Series

This hook mounted electric hoist has a winch which is equipped with built-in safety device, allowing operators to stably control the lifting and lowering of materials. The electric hoist can be widely used in warehouses, storage areas, buildings, construction workplaces and factories for a variety of industries.

Model
  • HXS-100F
  • HXS-150F
  • HXS-200F
  • HXS-250F
Features
  • Designed with emergency stop switch, forced disconnect switch and thermal overload protection unit;
  • Lightweight and compact design for easy portability;
  • Lifting will be automatically stopped when wire rope touches the limit arm;
  • Sensor arm automatically stops motor to prevent reverse winding;
  • Simple plug connection for quick and easy connection;
  • 360-degree swivel hook with safety latch;
Inquiry
Technical Data
Model HXS-100F HXS-150F HXS-200F HXS-250F
Rated capacity (kg) 100 150 200 250
Rated voltage (V) AC 100/110/120/220/230/240 50/60Hz
Input power (W) 580 780 1050 1200
Wire rope diameter (mm) Φ3.8 Φ4.2
Lifting speed (m/min) 15 12
Lifting height (m) 20
Gross weight/net weight (kg) 28/27 30/29
Packaging size (mm) 425×365×370
Hook Mounted Electric Hoist, HXS Series
